  • Martin's Super D Koa Dreadnought is a new offering  in the Custom Expert Series for fall 2022.  It brings greater volume to the dreadnought sound!  It features a Sitka spruce top with VTS and a beautiful 3-piece back of highly figured koa wood.

    Martin's designers have created a new dreadnought body size that enhances bass while  maintaining accurate mid and treble frequencies. A unique bracing pattern creates an extended dynamic range and more volume with less effort than any other Martin. The Super D's internal air volume is almost 20% larger than the standard dreadnought.  Body depth and scale length remain the same for comfort.

    The exact appearance of this item may vary.
    More Details

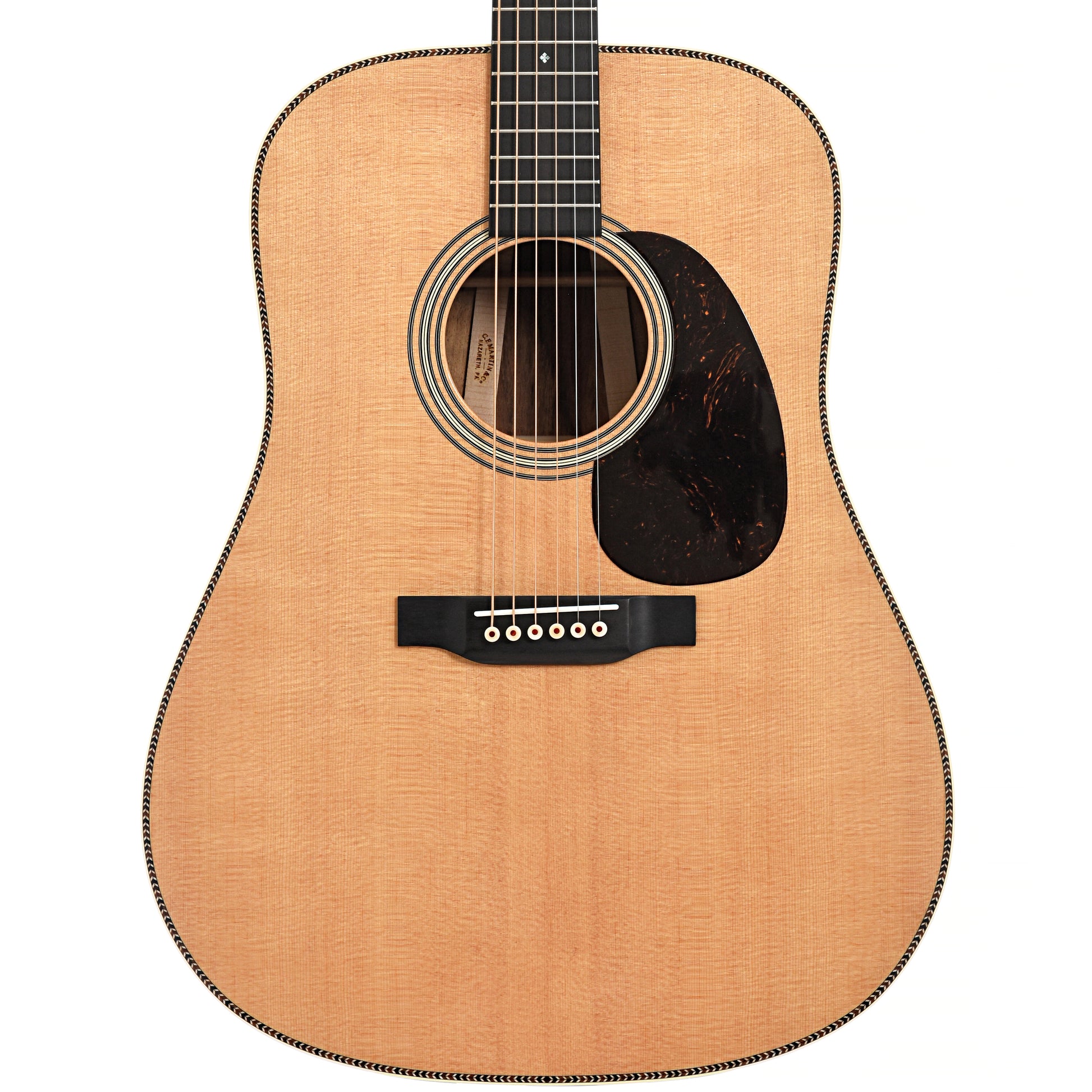

  • Front of Martin Super D Koa Dreadnought Guitar

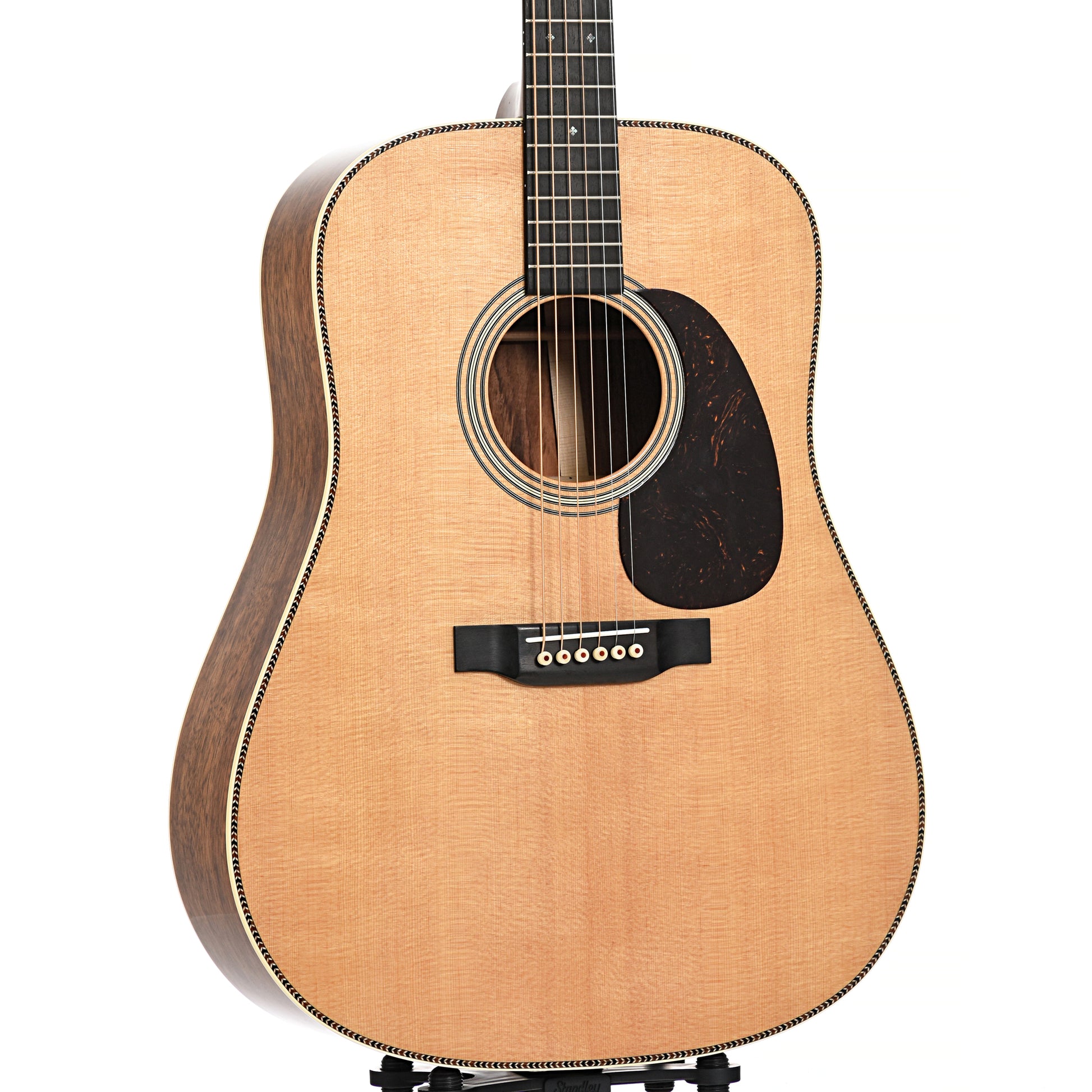

  • Front and side of Martin Super D Koa Dreadnought Guitar

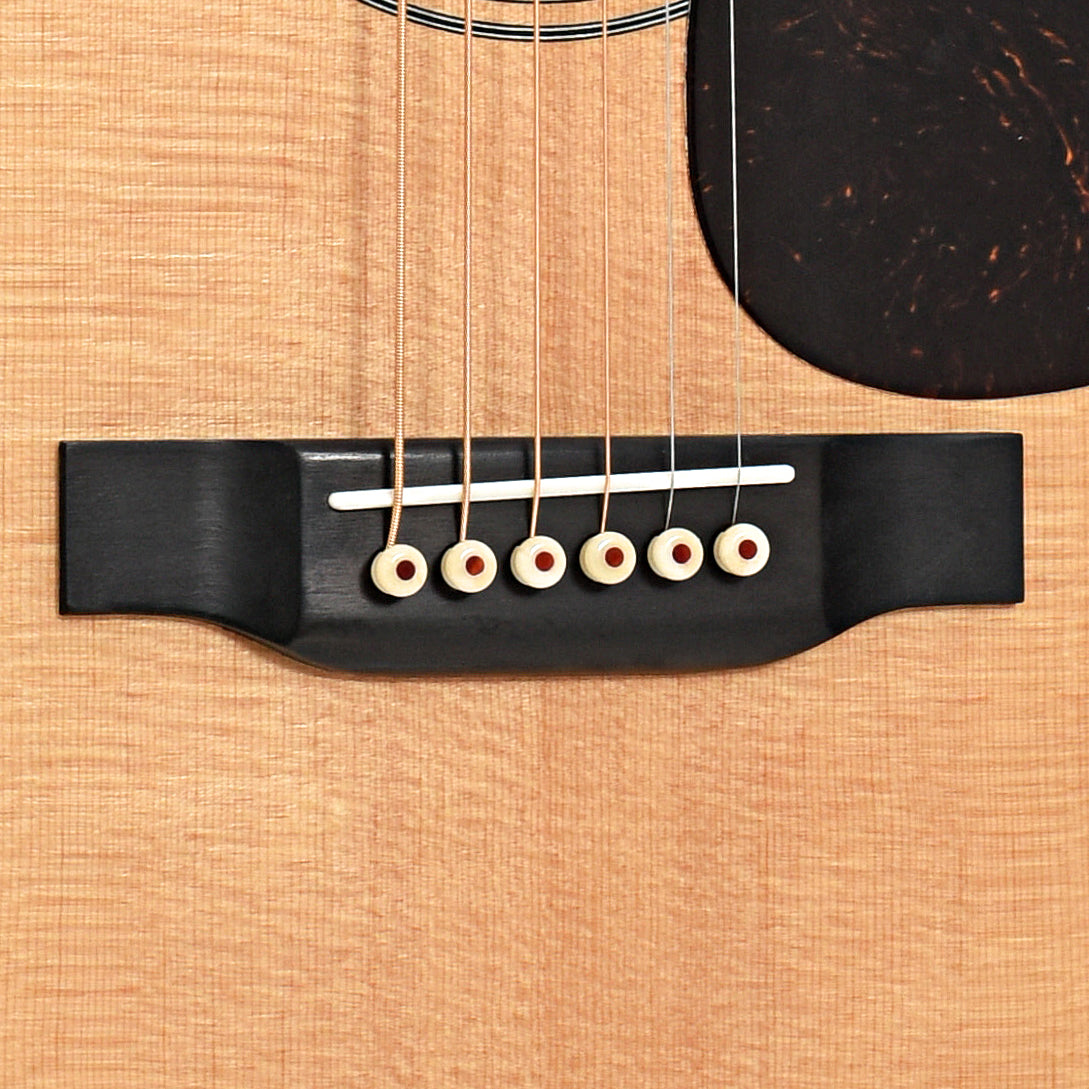

  • Bridge of Martin Super D Koa Dreadnought Guitar

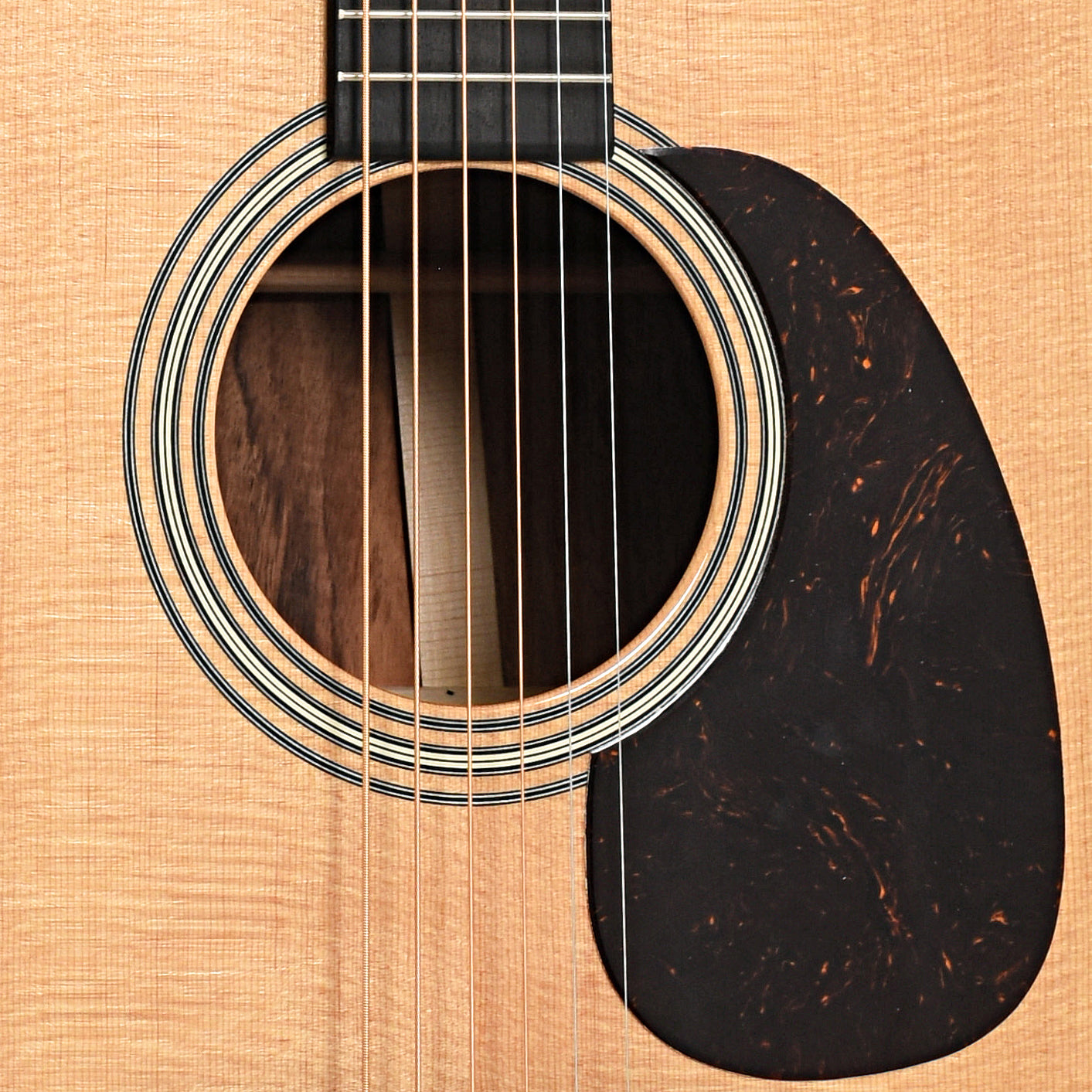

  • Sound hole and pickguard of Martin Super D Koa Dreadnought Guitar

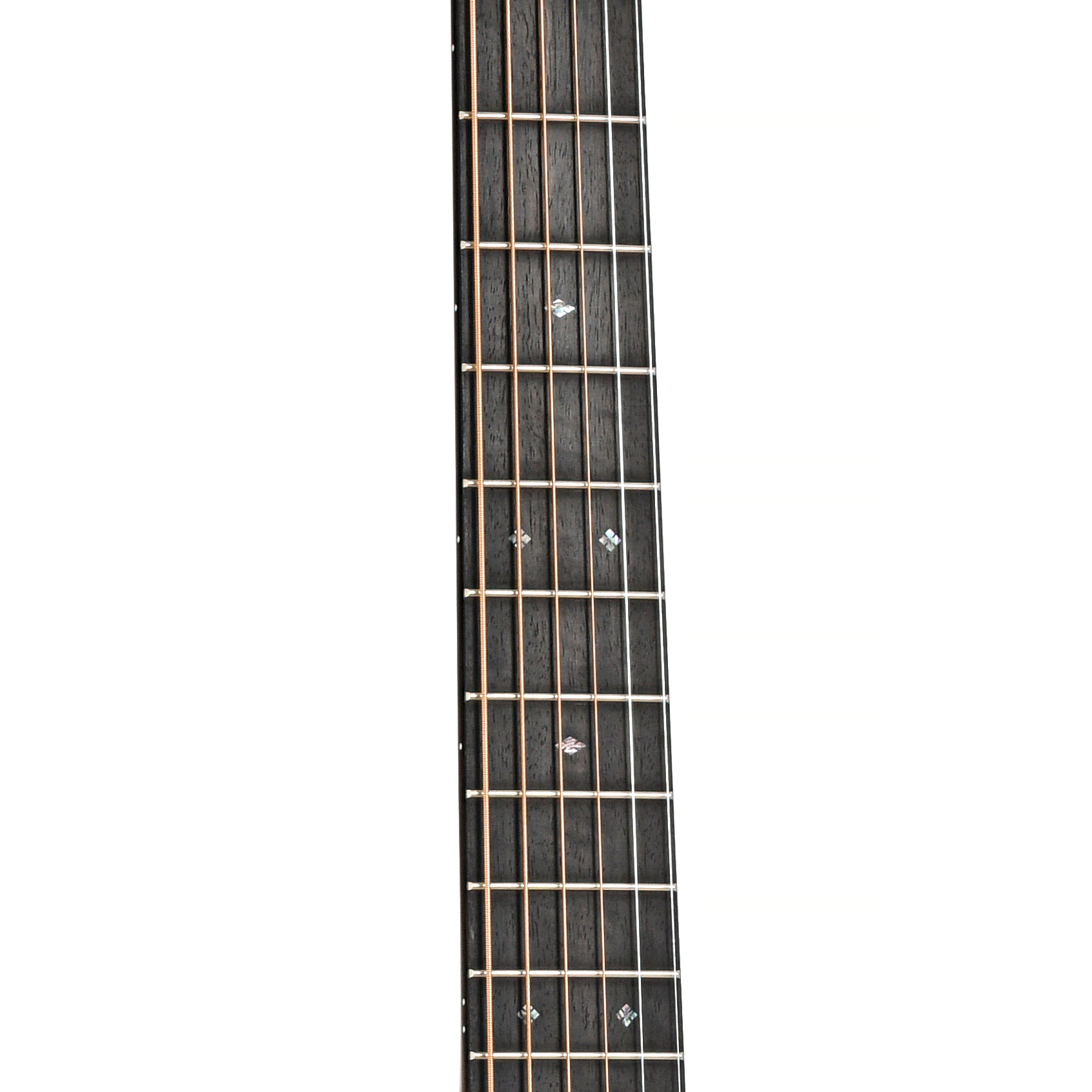

  • Fretboard of Martin Super D Koa Dreadnought Guitar

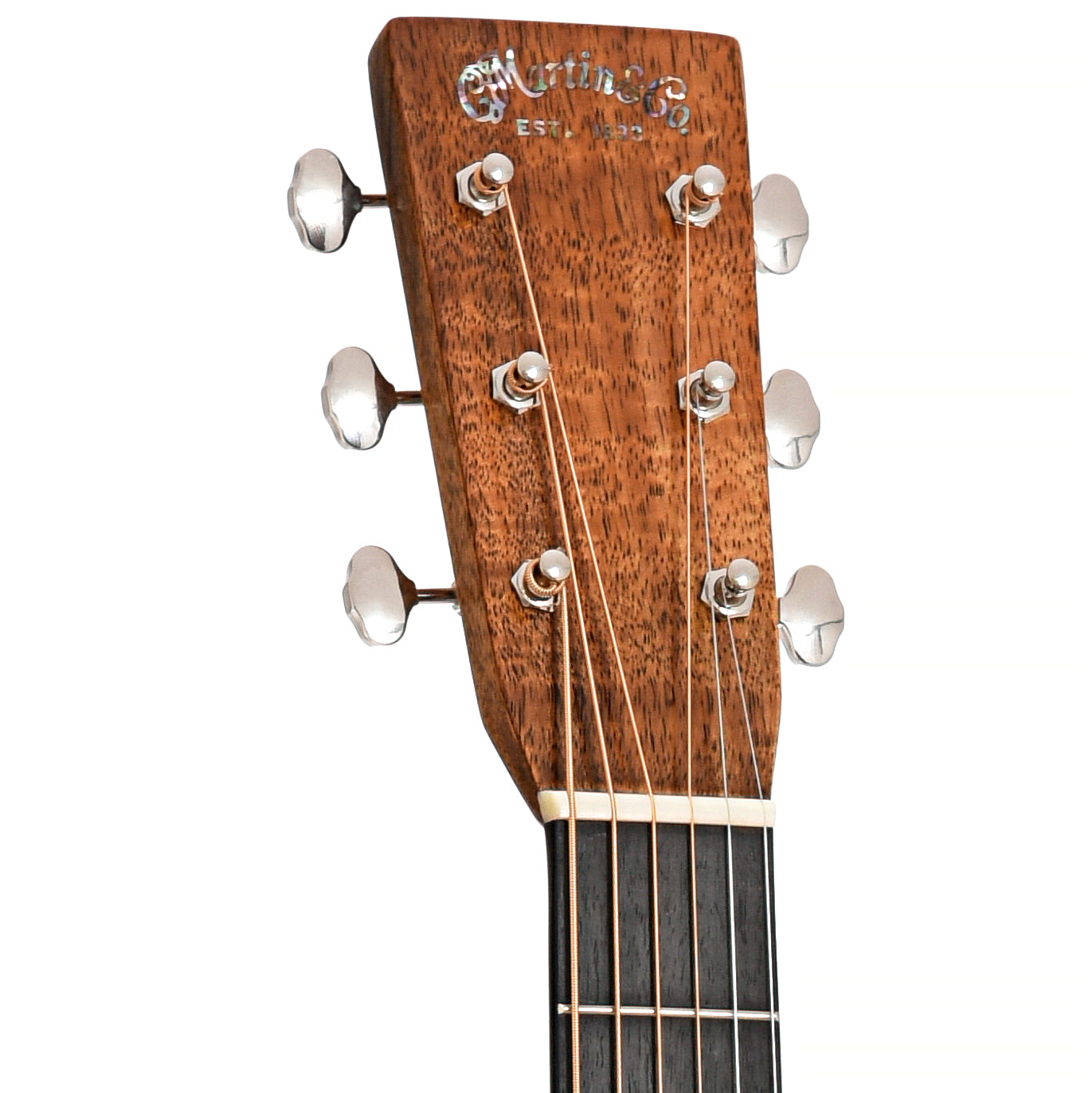

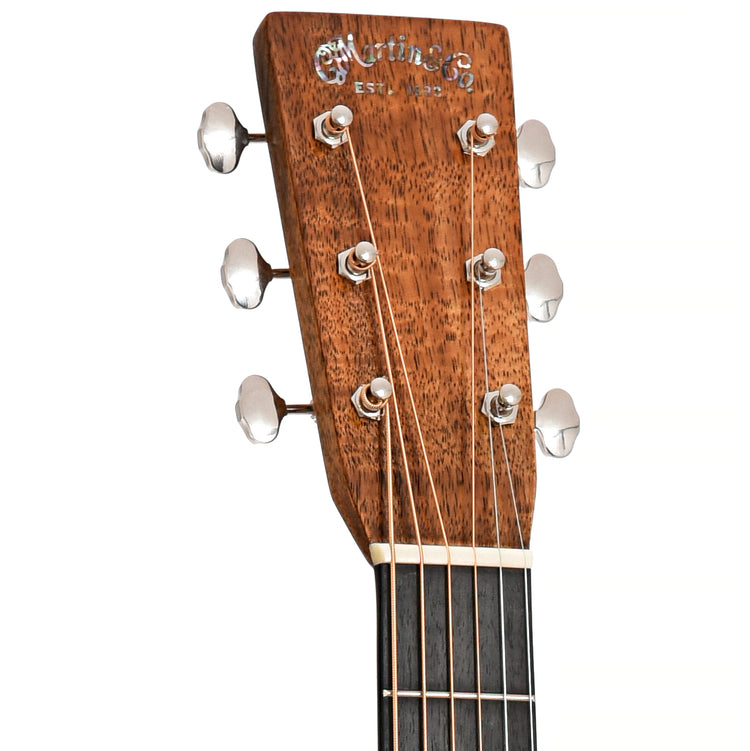

  • Front headstock of Martin Super D Koa Dreadnought Guitar

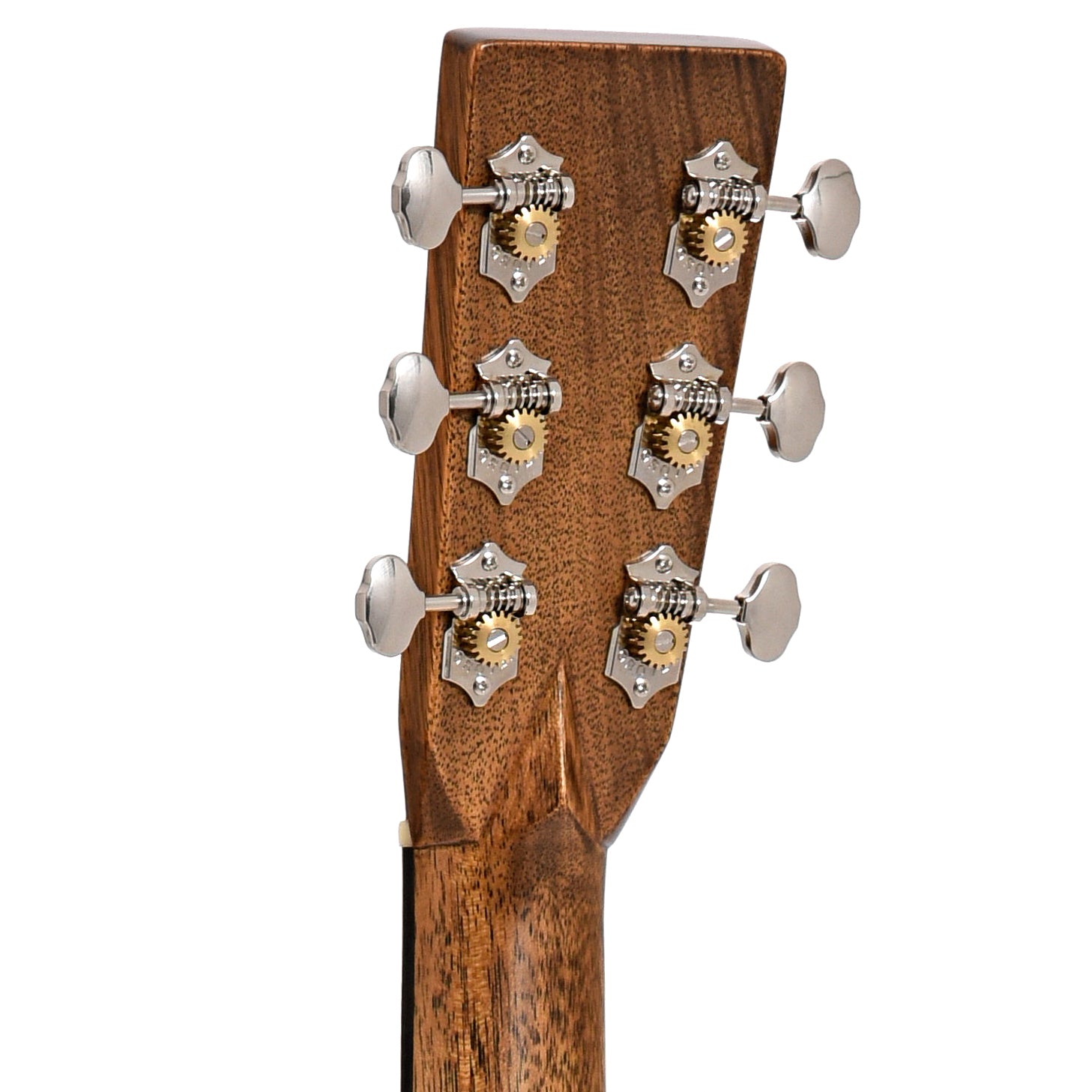

  • Back headstock of Martin Super D Koa Dreadnought Guitar

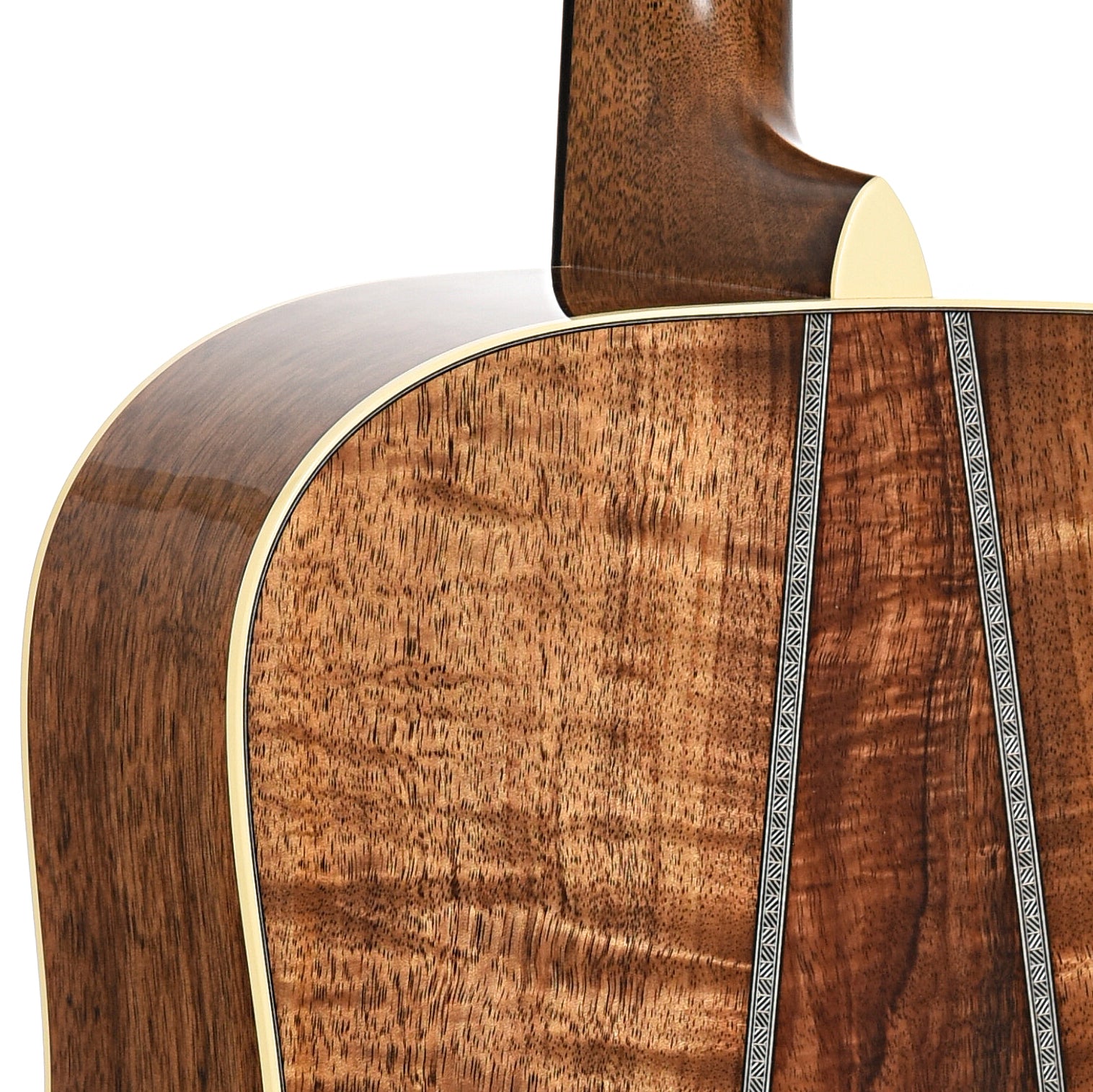

  • Heel of Martin Super D Koa Dreadnought Guitar

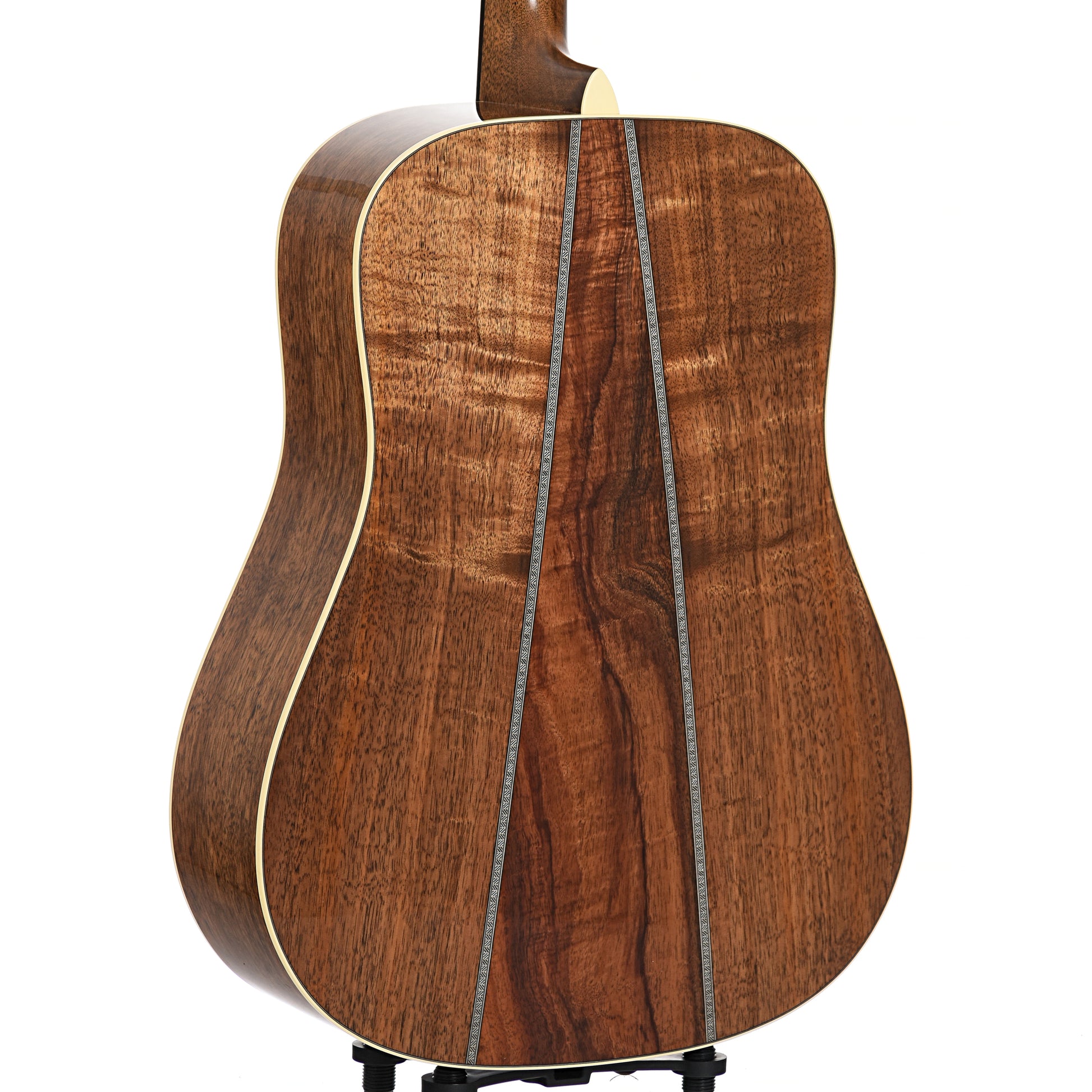

  • Back and side of Martin Super D Koa Dreadnought Guitar

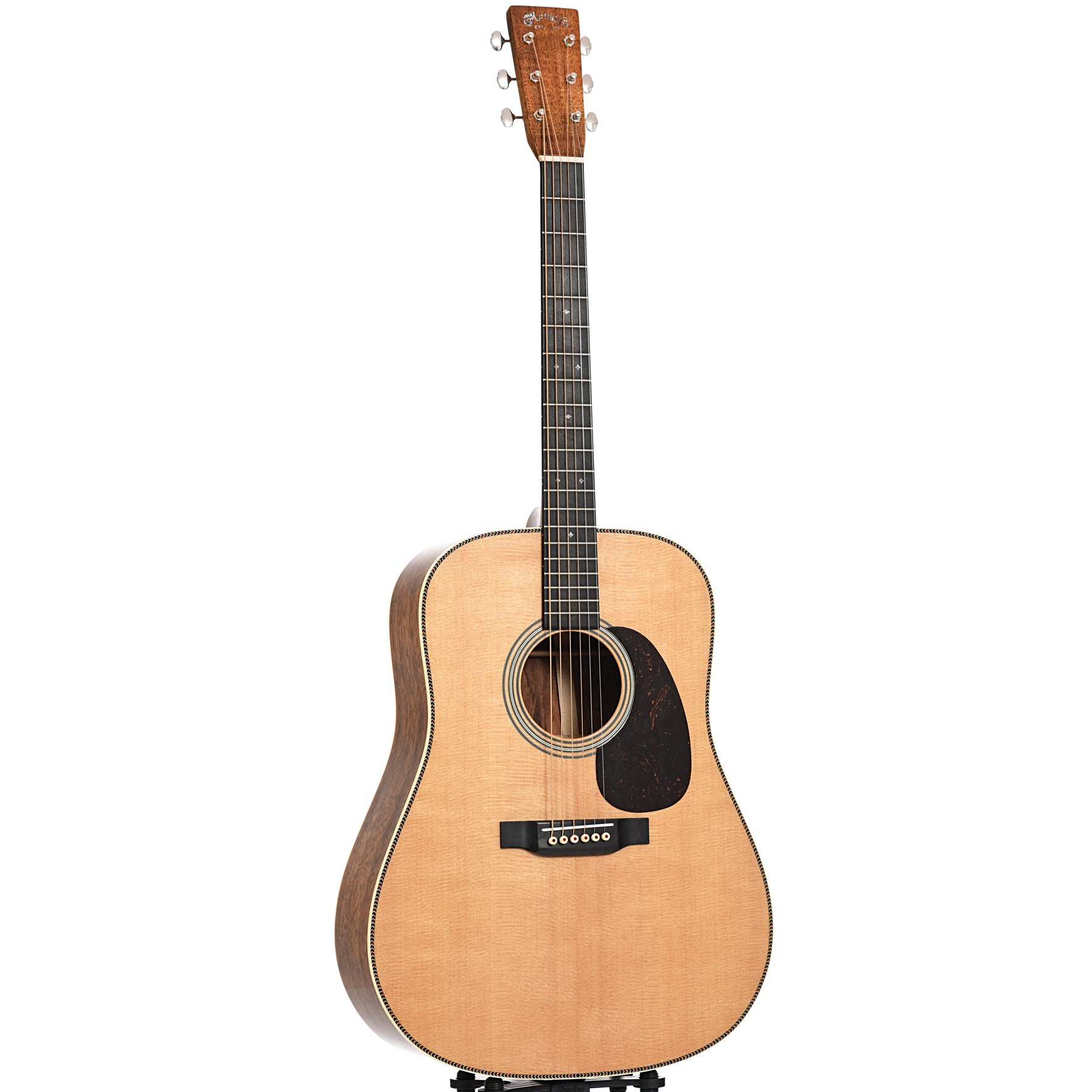

  • Full front and side of Martin Super D Koa Dreadnought Guitar

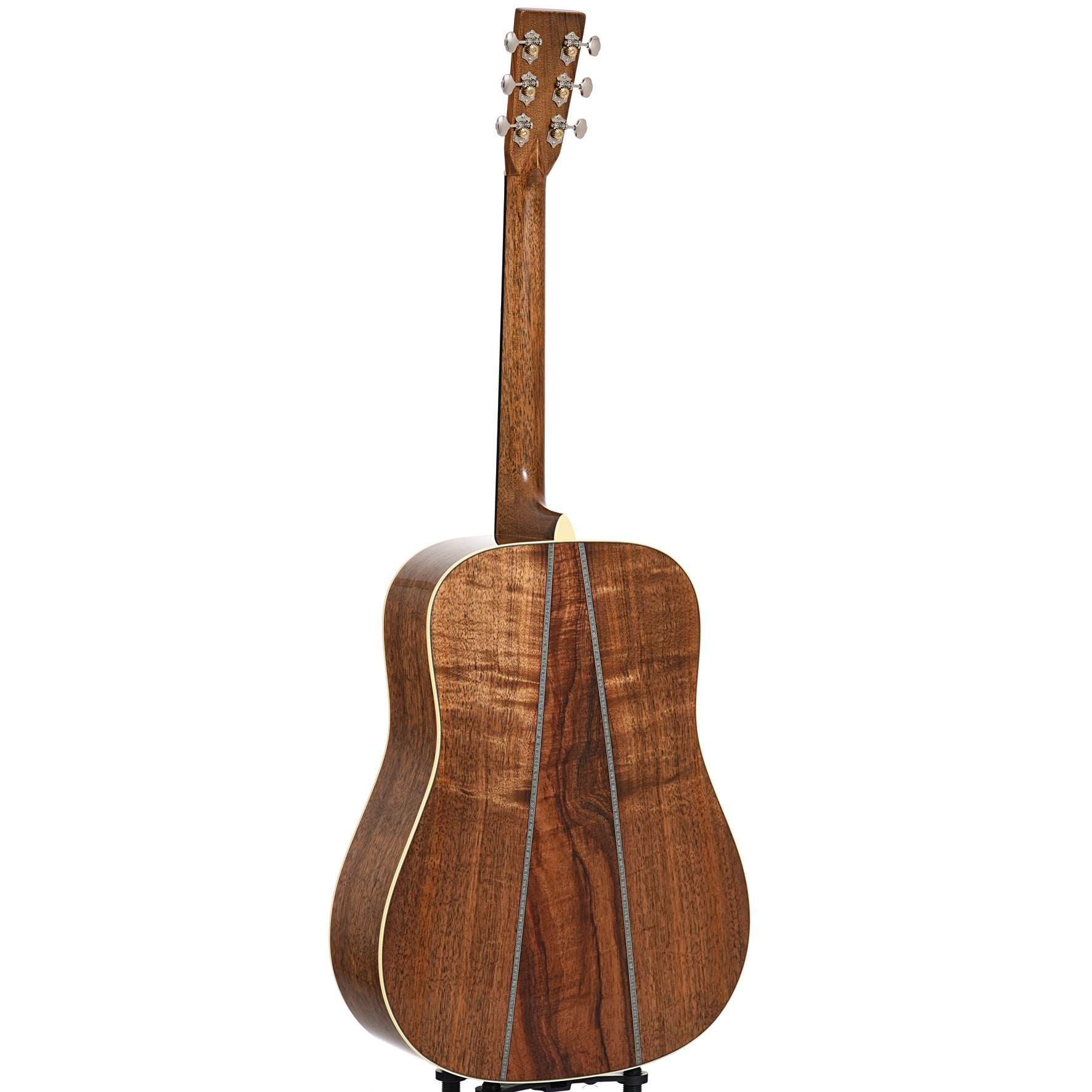

  • Full back and side of Martin Super D Koa Dreadnought Guitar

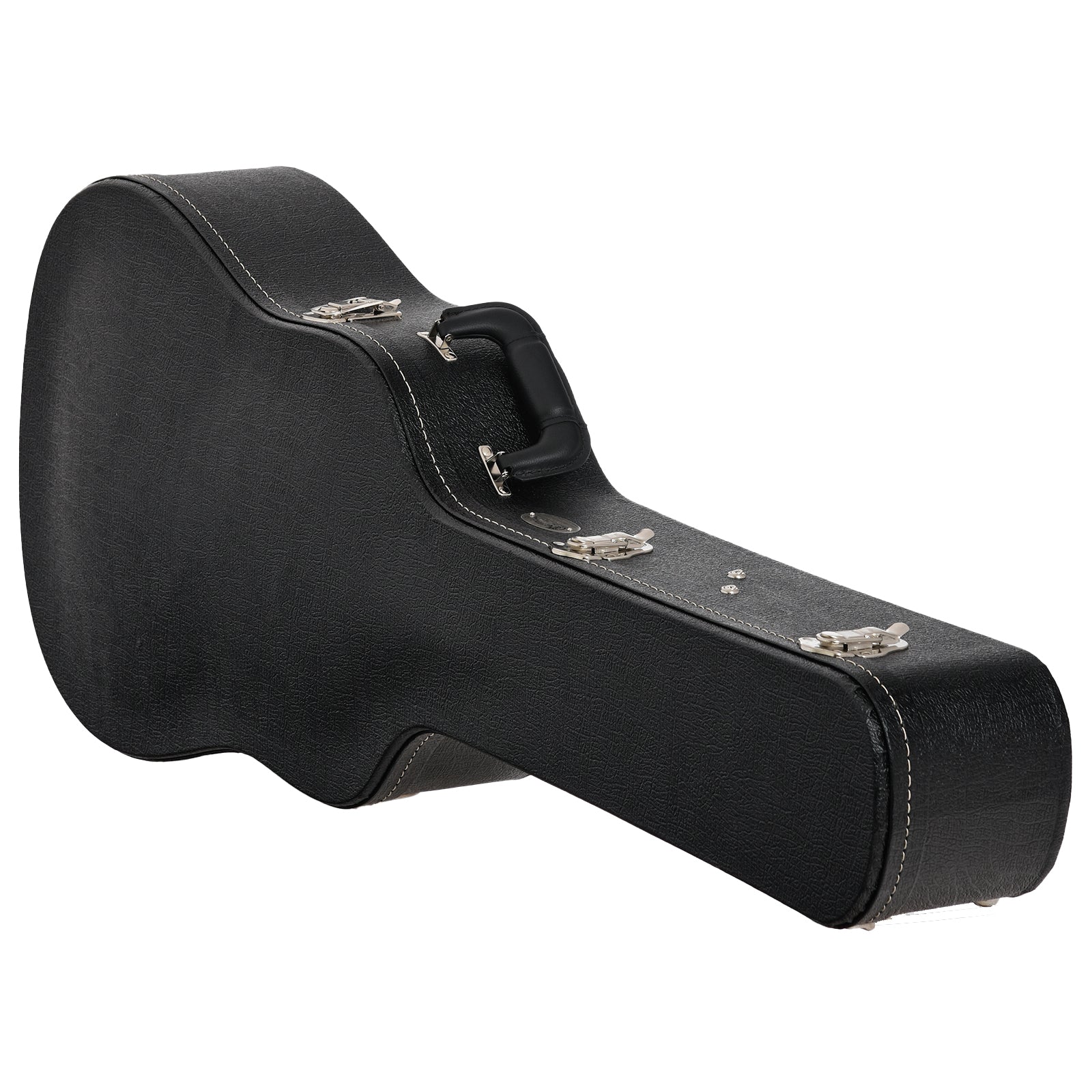

  • Case for Martin Super D Koa Dreadnought Guitar
1 of 13

More Details

  • Model:         Super D Koa (#SUPERD-KOA)
  • Body Size:    Super D 14-Fret
  • Construction: Dovetail Neck Joint, Adjustable Truss Rod
  • Back and Sides: Highly Figured Koa with 3-Piece Back
  • Top:          Sitka Spruce with VTS
  • Bracing:      Sitka Spruce, Scalloped 5/16”, Super D Pattern
  • Binding, Endpiece, Heelcap:    Antique White
  • Rosette:       Style 28, Black&Maple Fiber
  • Top Inlay Material: Tri-color Herringbone
  • Back Inlay:   Black/Maple/Black Fiber with Zig-Zag Back Strips
  • Pickguard:       Faux Tortoise
  • Neck Material:Genuine Mahogany
  • Scale Length: 25.4”
  • Fingerboard Width At Nut: 1-3/4”
  • Neck Shape:     Modified Low Oval
  • Neck Taper:      High Performance
  • Fingerboard Material: Ebony
  • Fingerboard Inlay Style: Long Pattern Diamonds & Squares
  • Fingerboard Inlay Material: Abalone
  • Neck Joins Body At: 14th Fret
  • Headstock Shape: Solid with Square Taper, Diamond Volute
  • Tuning Machines: Grover Nickel Open Gear with Butterbean Knobs
  • Headplate:        Highly Figured Koa with CF Martin Script Inlay, Abalone
  • Nut Material:    Bone
  • Bridge:             Ebony, Modern Belly, Drop-In Saddle, Compensated
  • Saddle:             Bone
  • Bridge String Spacing:     2-5/32”
  • Bridge Pin Material:     Bone with Faux Tortoise Dots
  • Finish:             Gloss Body, Clear Top, Satin Neck
  • Case:             3-Ply Hardshell, Olive Drab Velour Lining
  • Label:           None
  • Lefthanded Availability: Yes

Body Dimensions  (D Comparison):

  • Body Length: 21"   (D = 20")
  • Upper Bout: 12.1"  (D = 11.5")
  • Waist: 11.4"            (D = 10.8")
  • Lower Bout: 16.5"  (D = 15.6")
  • Body Volume: 1214 cubic" (18% larger than D)

Martin Super D Koa Dreadnought Guitar & Case

Expert Setup
USA Only
Limited Warranty Included

SKU: SUPERD-KOA

Regular price
$4,999 USD
Regular price
Sale price
$4,999 USD
