The following specs were provided by our repair and appraisal teams.
For a more detailed description please call (517) 372-7880

• Very nice conversion!
• SN FON 9226-12
• 1928
• EC-

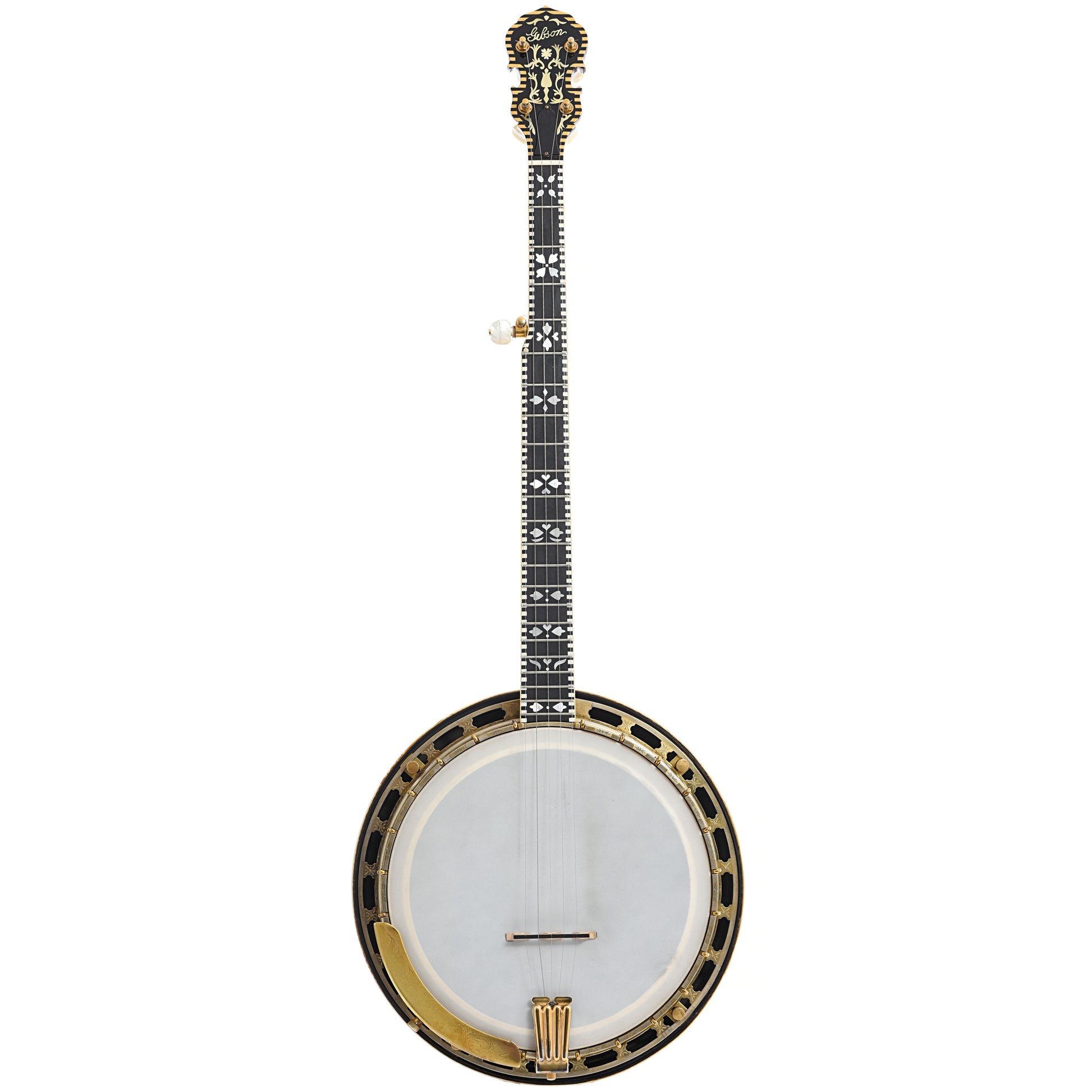

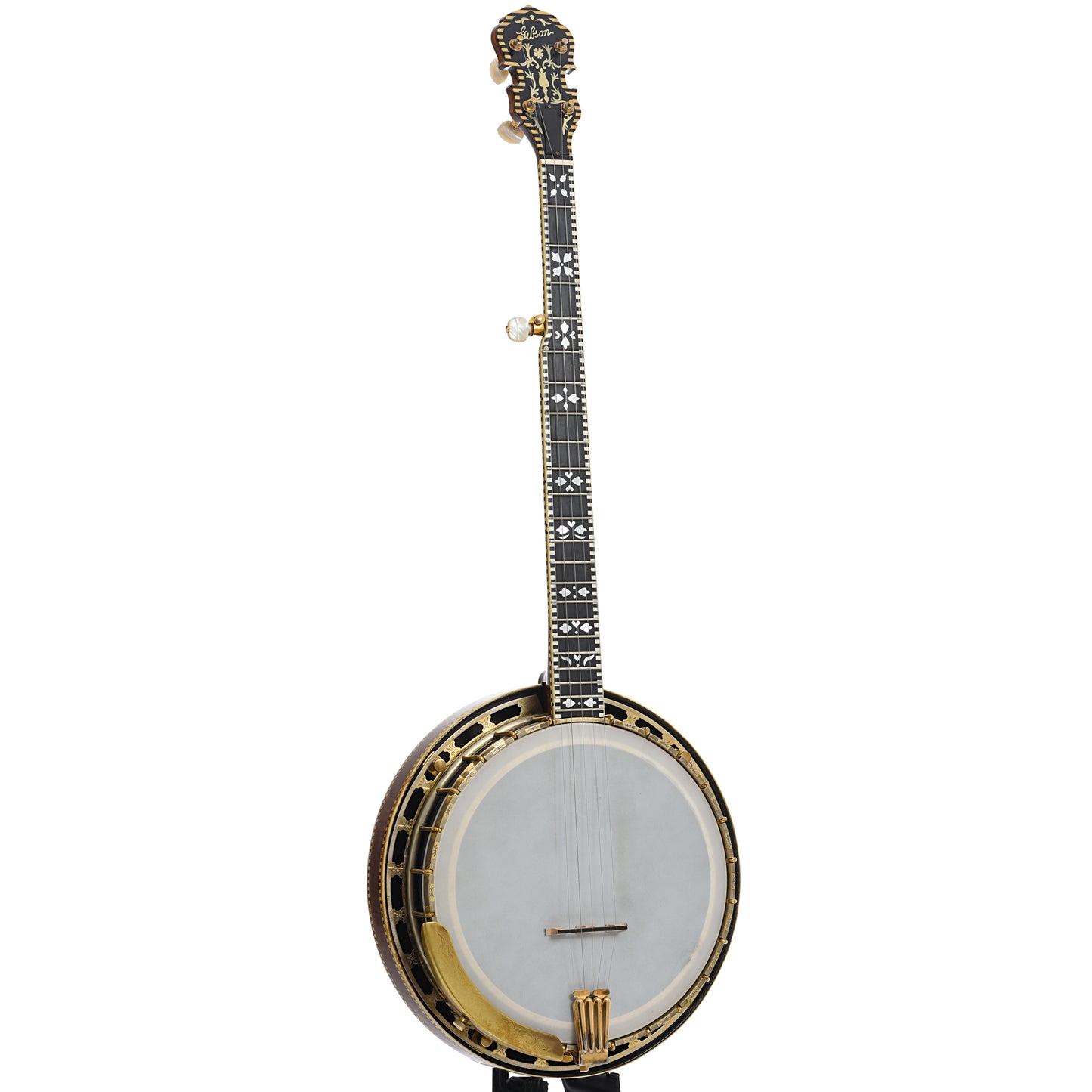

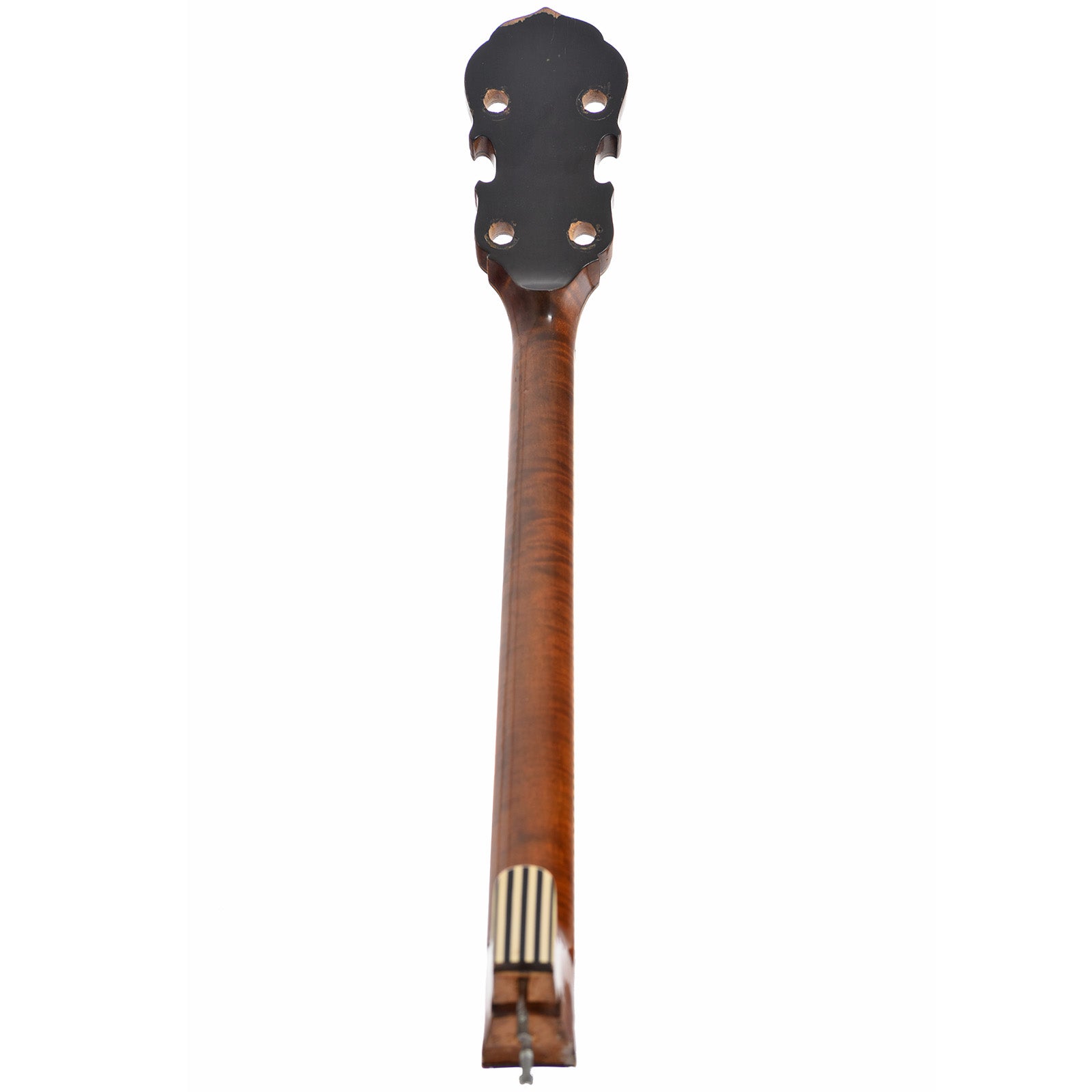

•  Very nicely made 5-string conversion neck by Jim Yarboro around 1980 and later reshaped by Chris Cioffi
• Other restoration work was performed at the same time in 2010 by Chris Cioffi

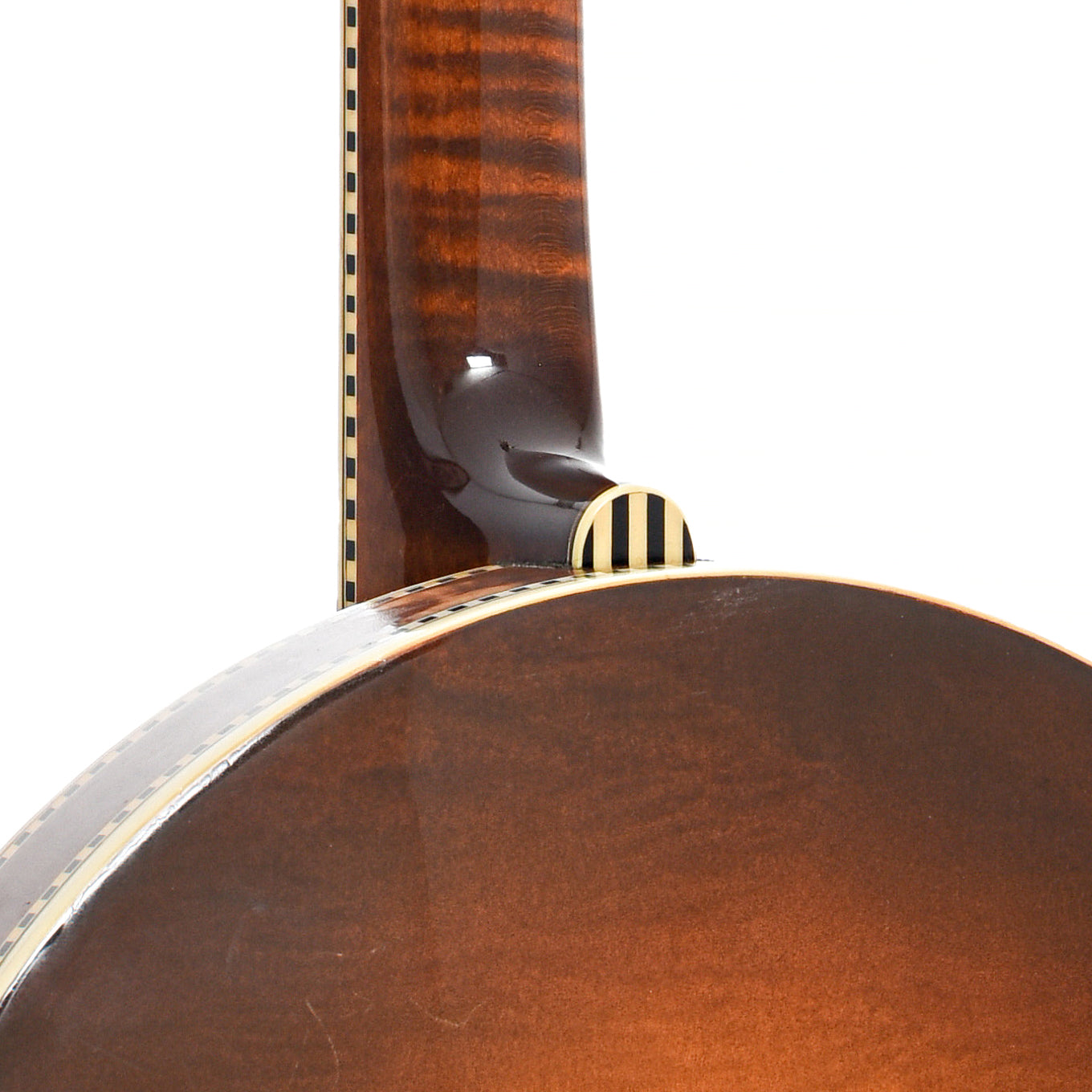

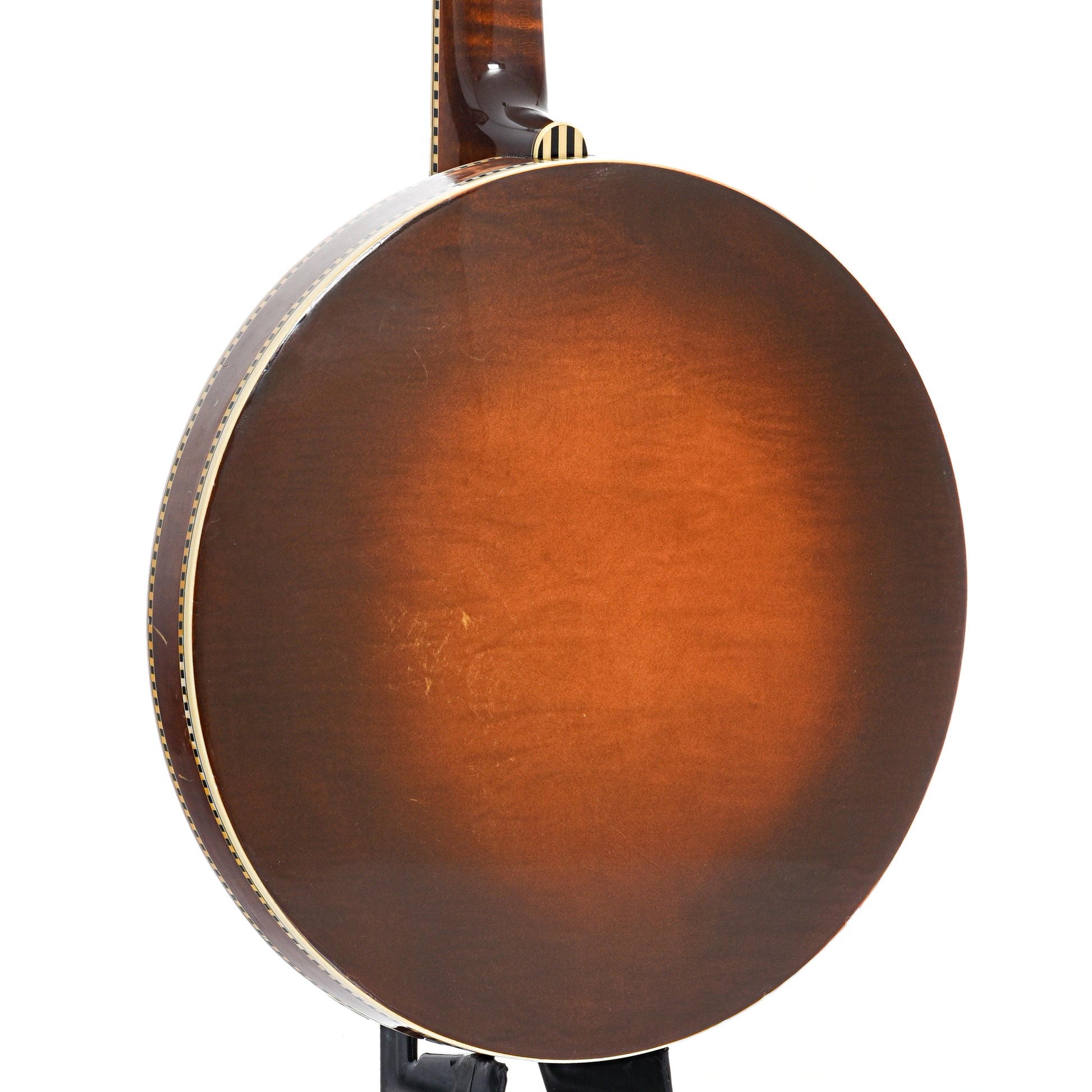

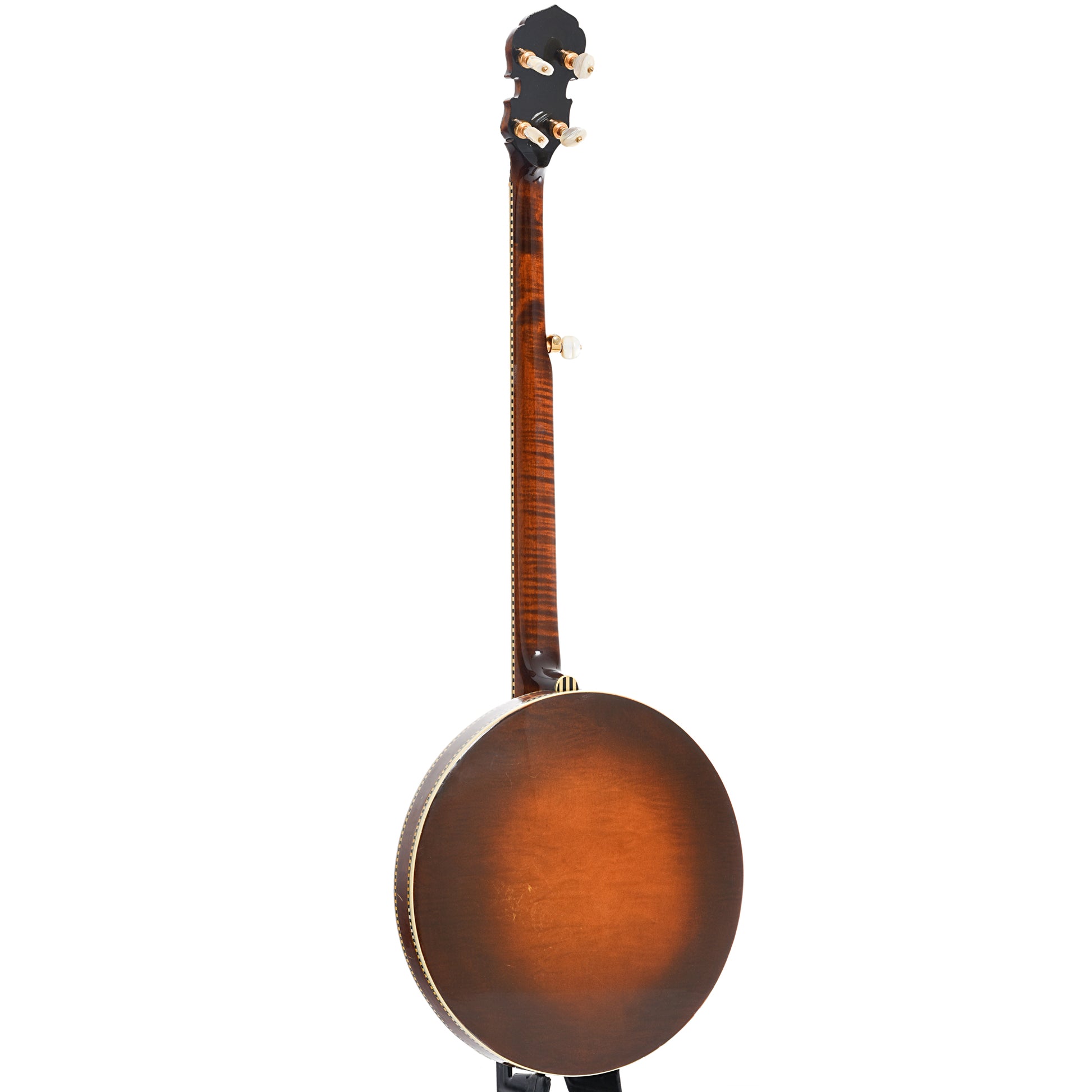

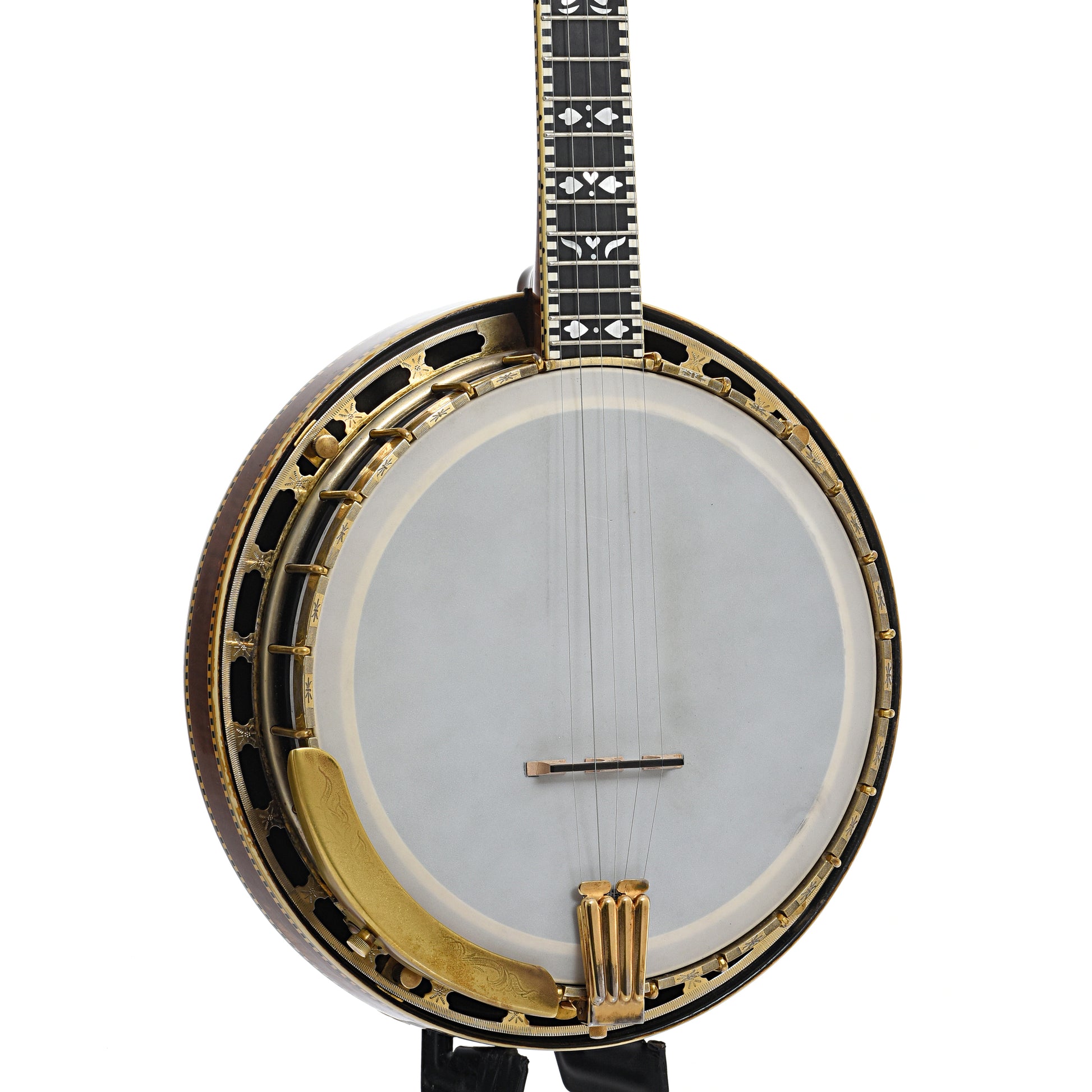

• Sunburst finish on highly figured maple resonator and conversion neck
• Over spray on resonator
• Bold checkerboard purfling on headstock, neck, fingerboard, and resonator

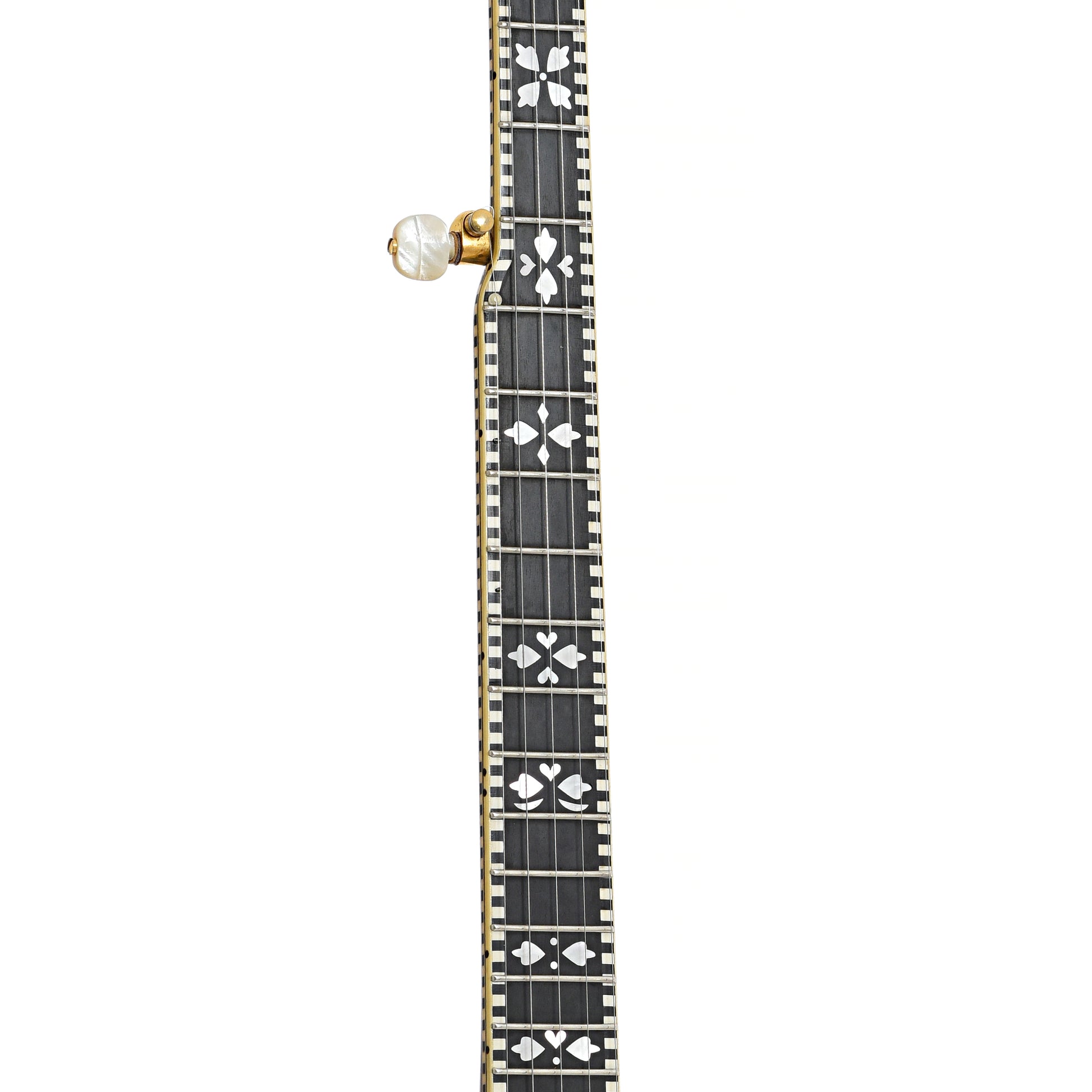

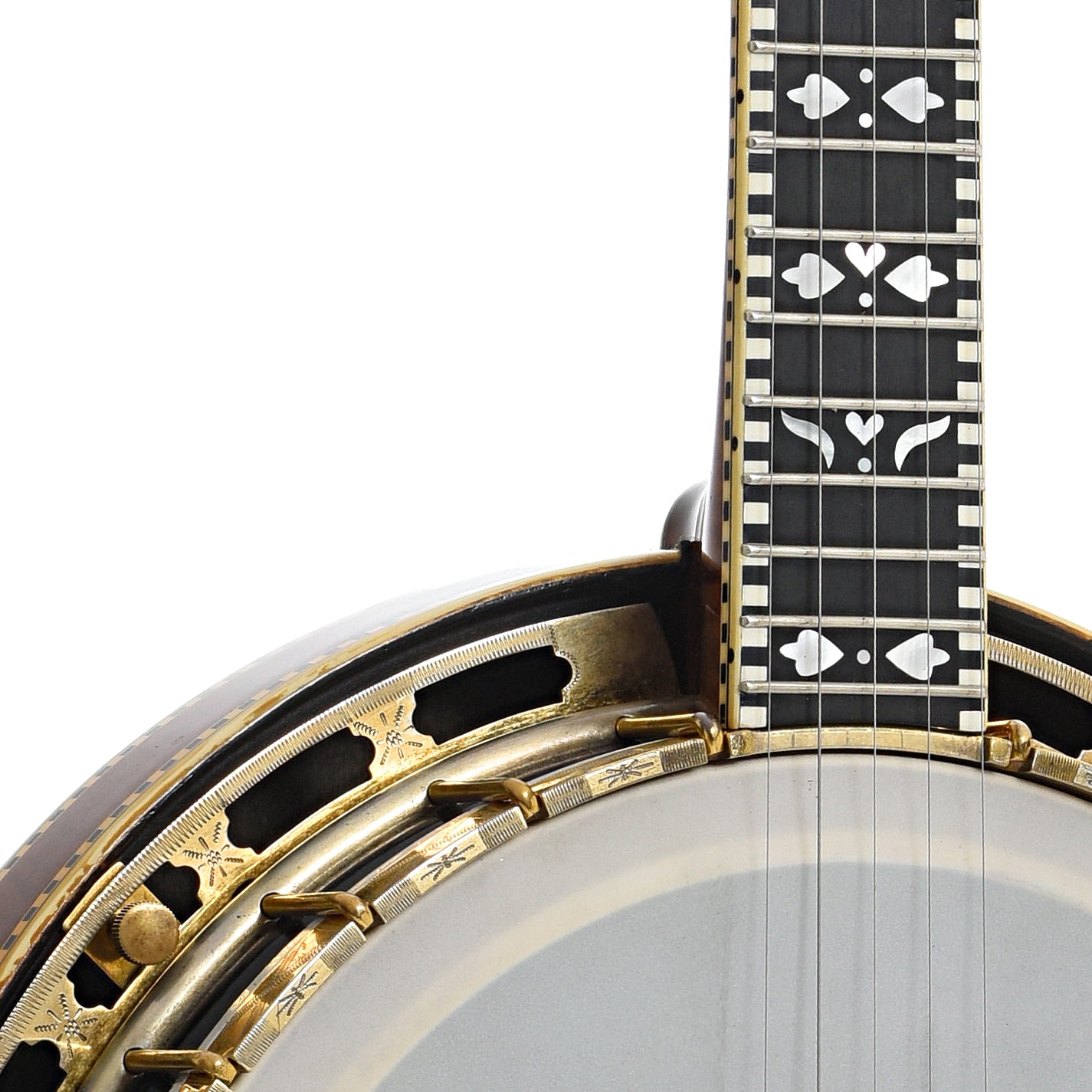

• 22-fret ebony fingerboard with pearl hearts and flowers inlays
• Railroad spikes installed in frets 7 and 9

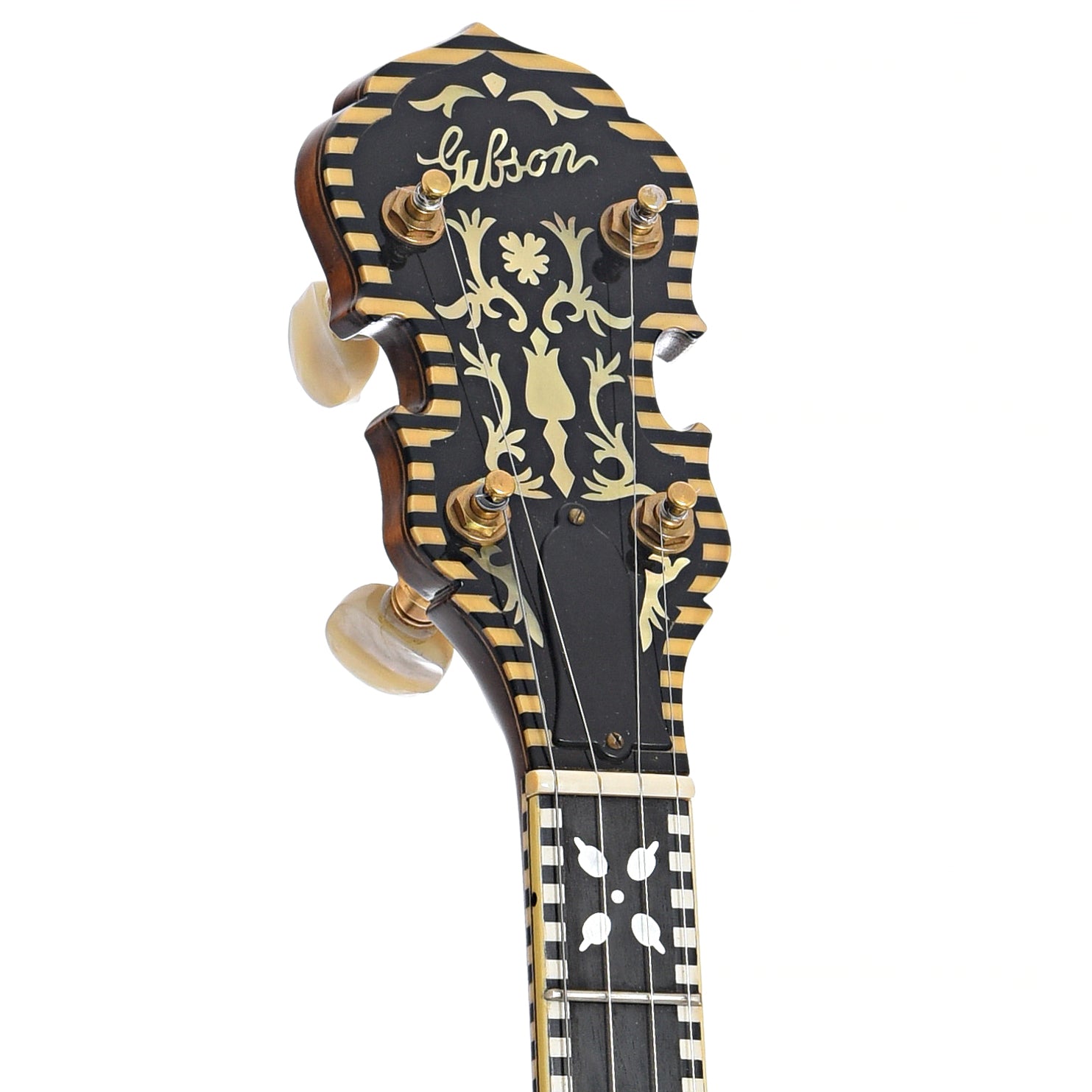

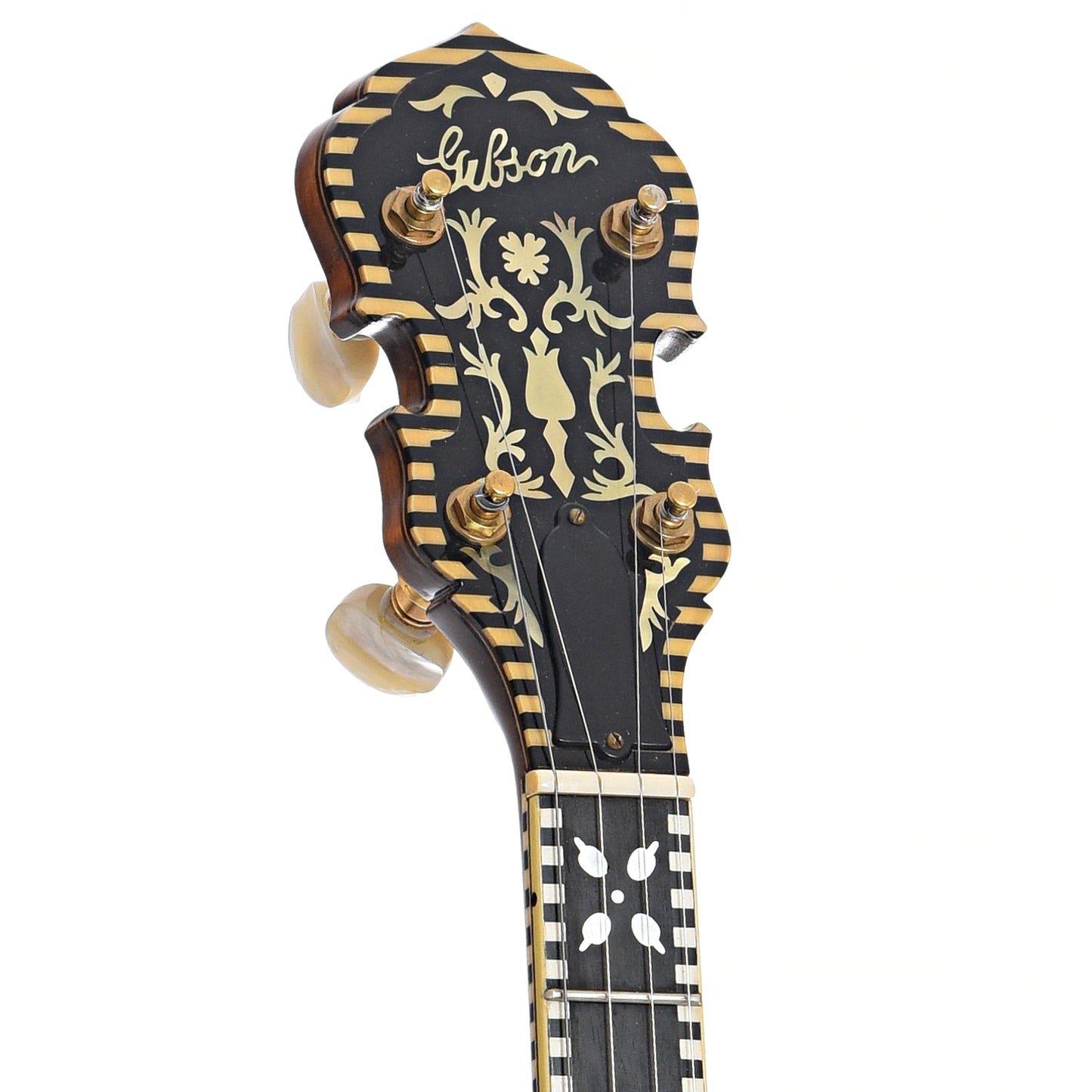

• Script "Gibson" logo and pearl floral inlays on headstock

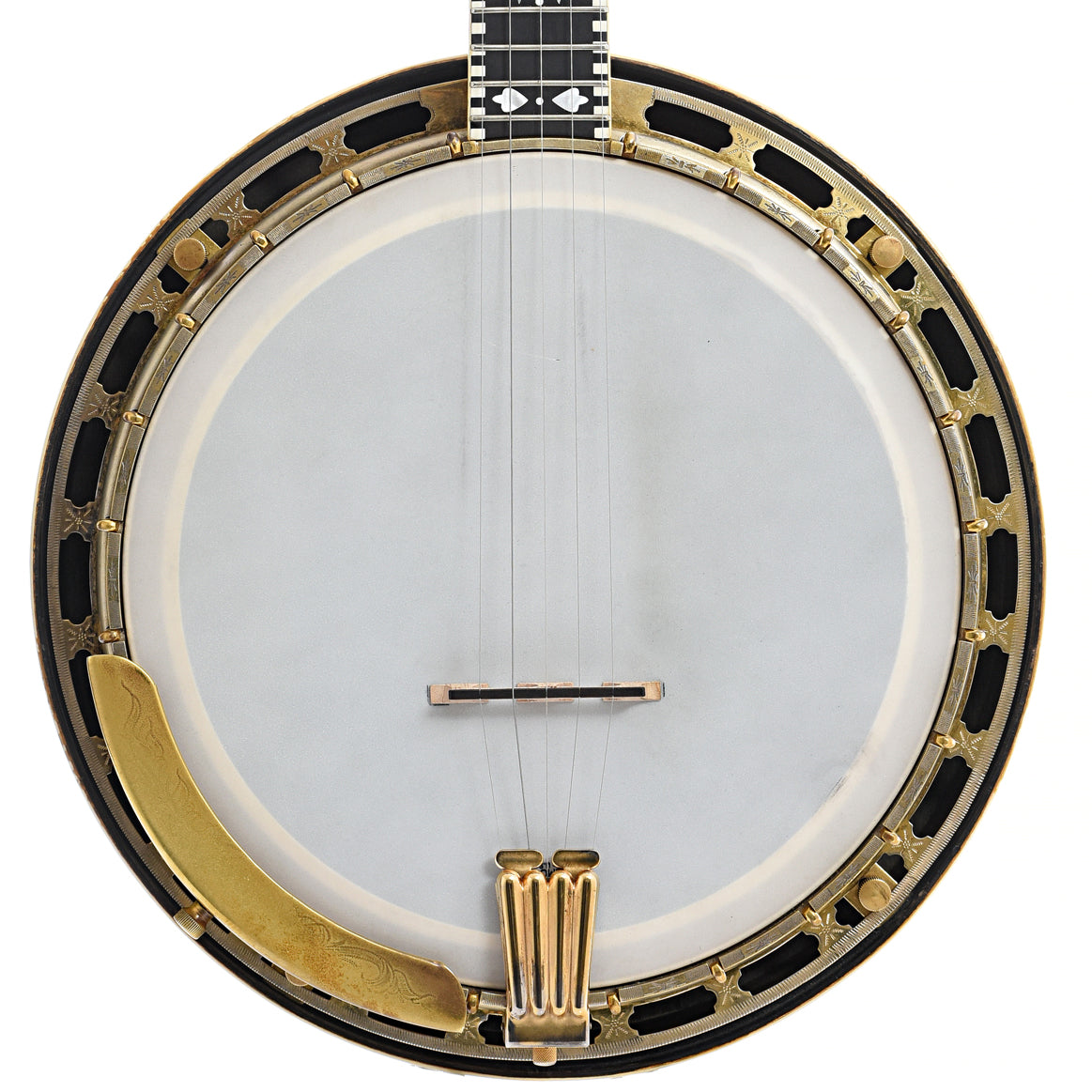

• Gold plated hardware with fancy engraving on flange, tone ring, tension hoop, and armrest
• ~3/4" three ply maple rim
• Original coordinator rod holes plugged and re-drilled (at neck end)
• "GIBSON MASTERTONE" label
• Original 40 hole archtop tone ring
• 2 piece tube and plate flange
• 24 bracket hooks
• Notched tension hoop

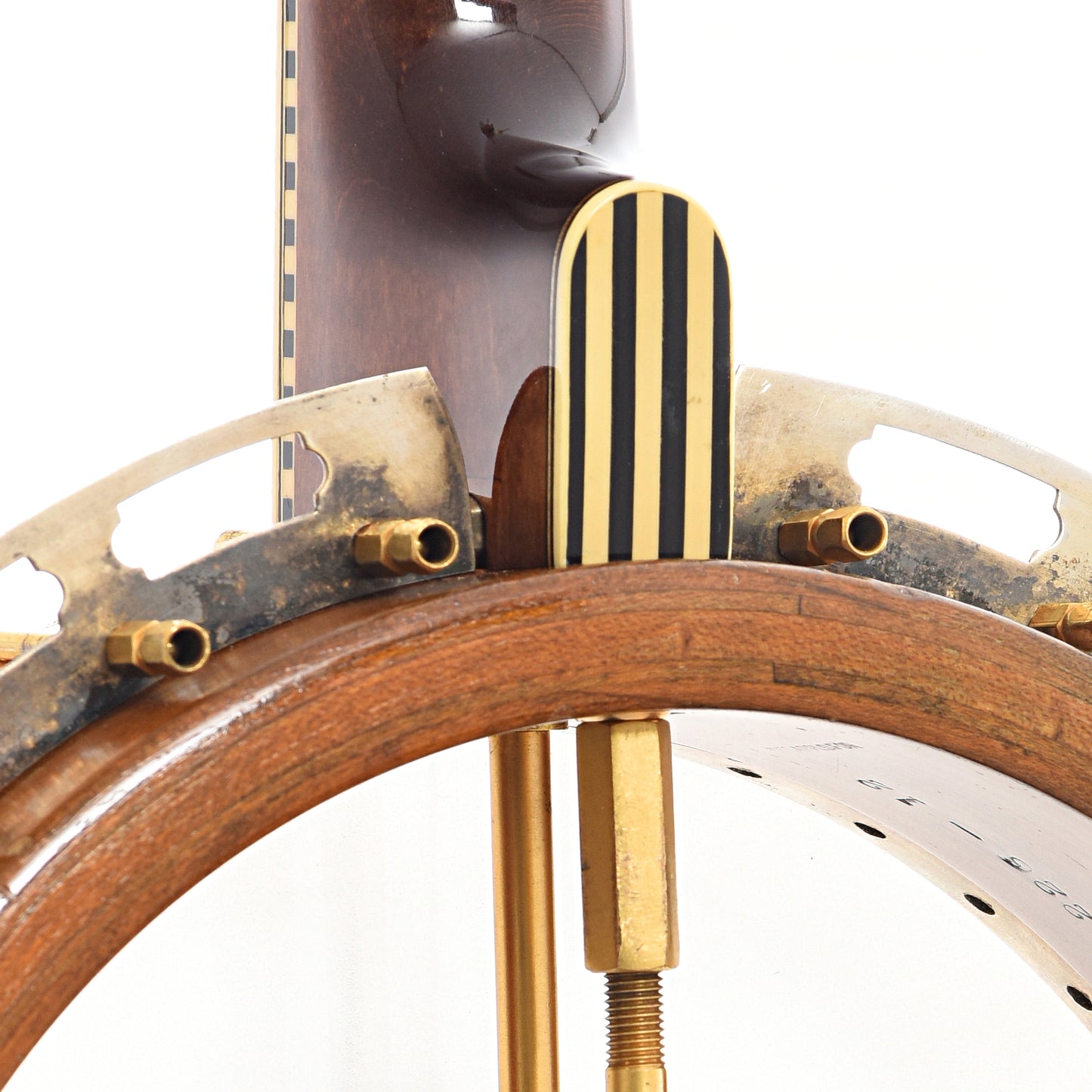

• Dual coordinator rods

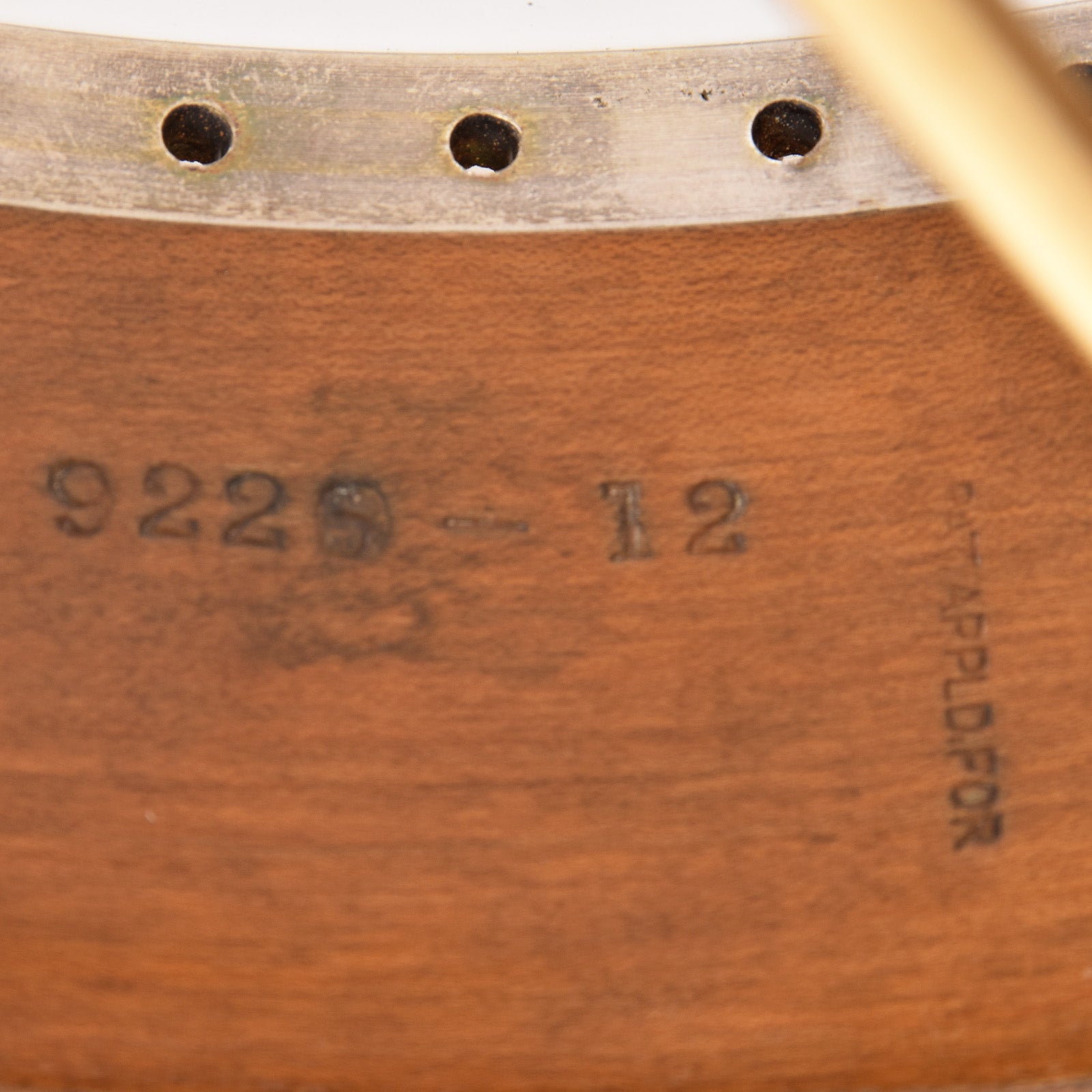

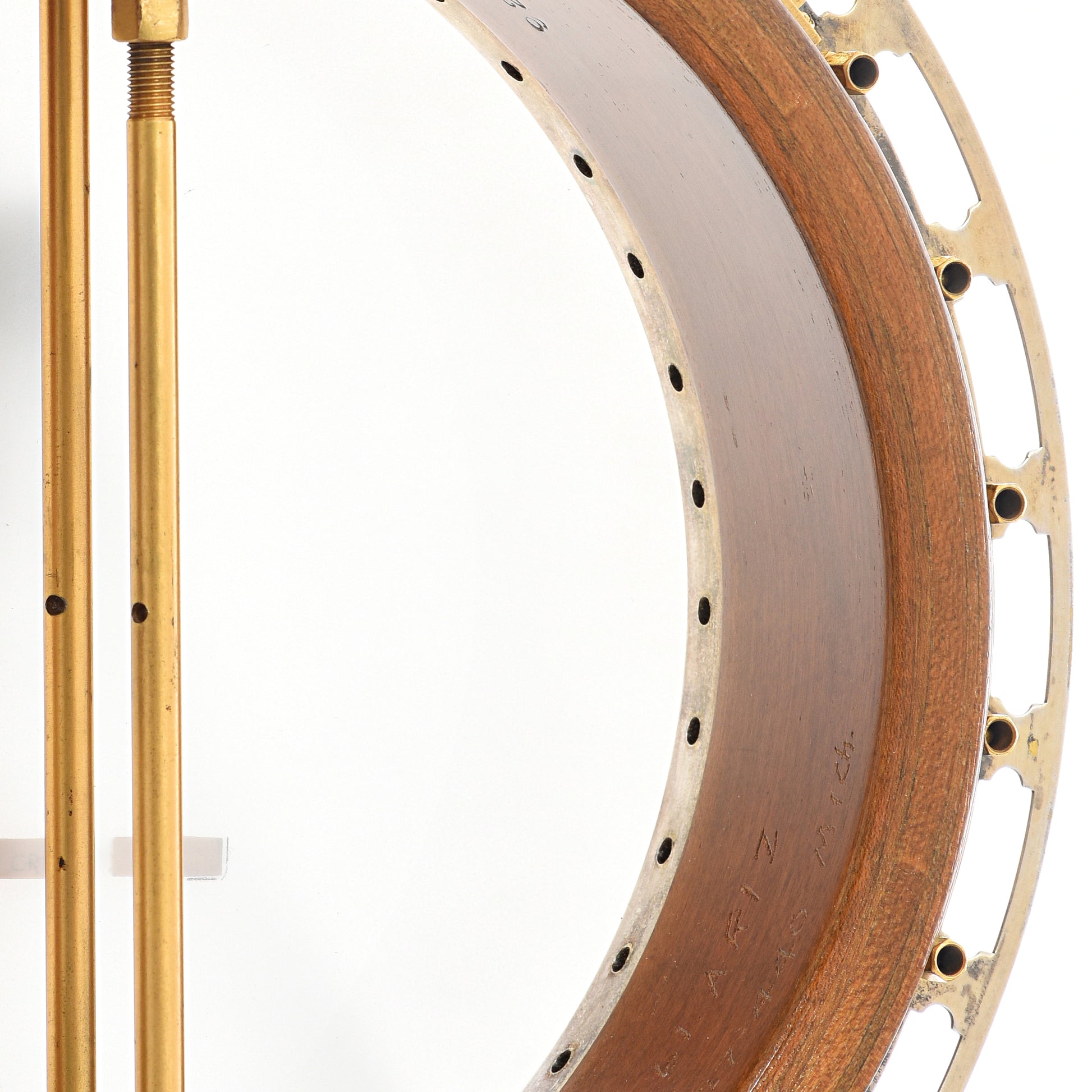

• Rim stamped "PAT.APPLD.FOR" by FON

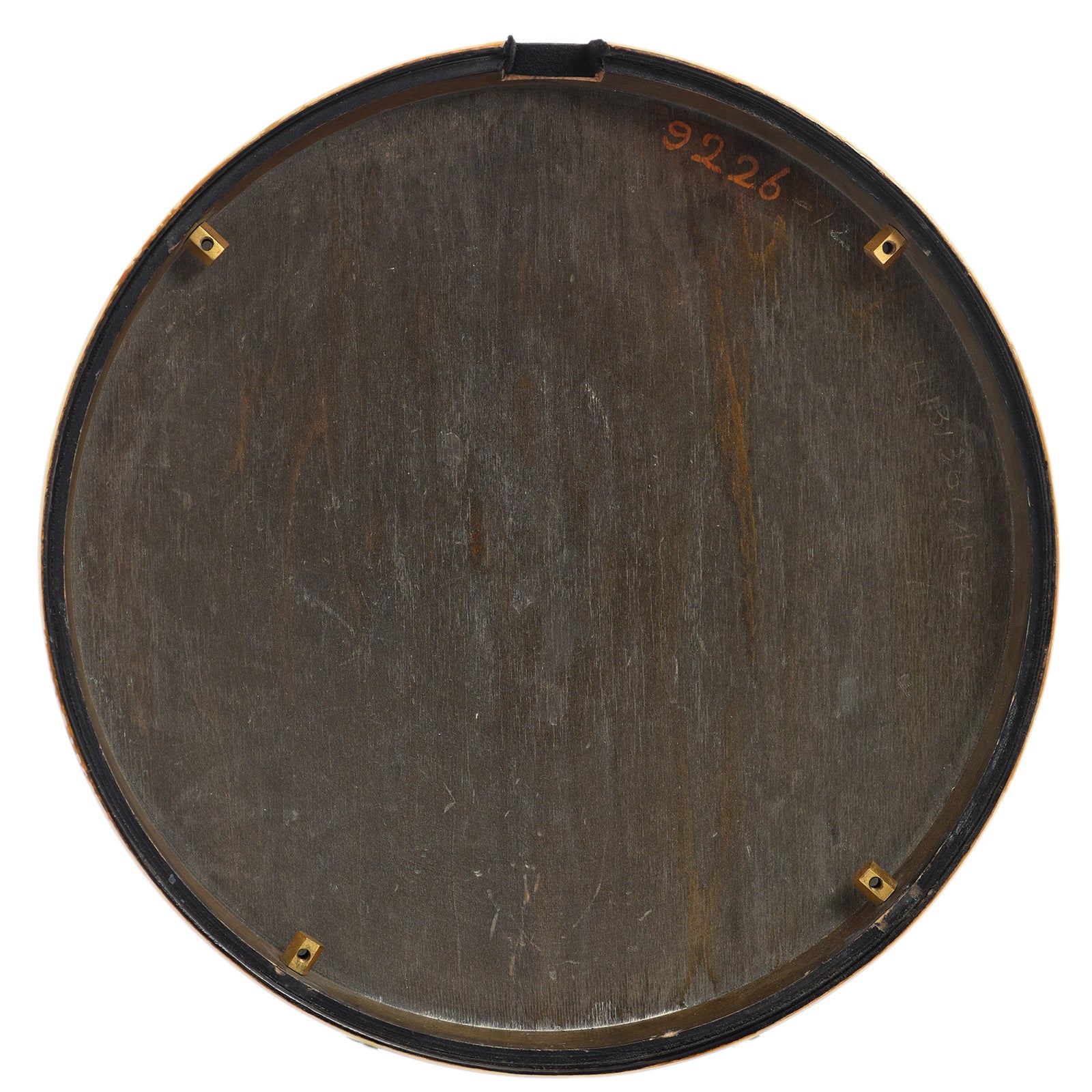

• "9226" gold painted inside resonator and "-12" chalked which match FON on rim

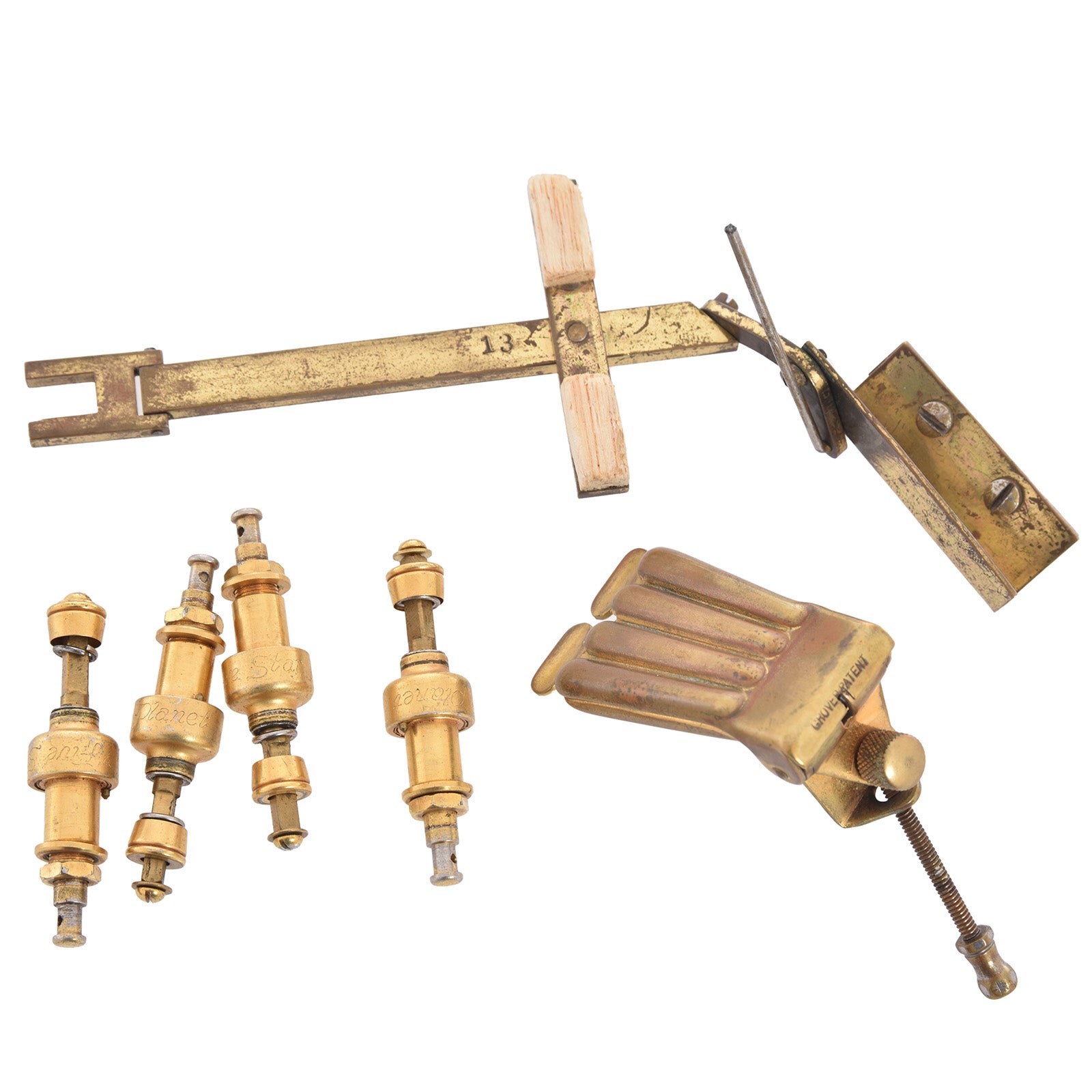

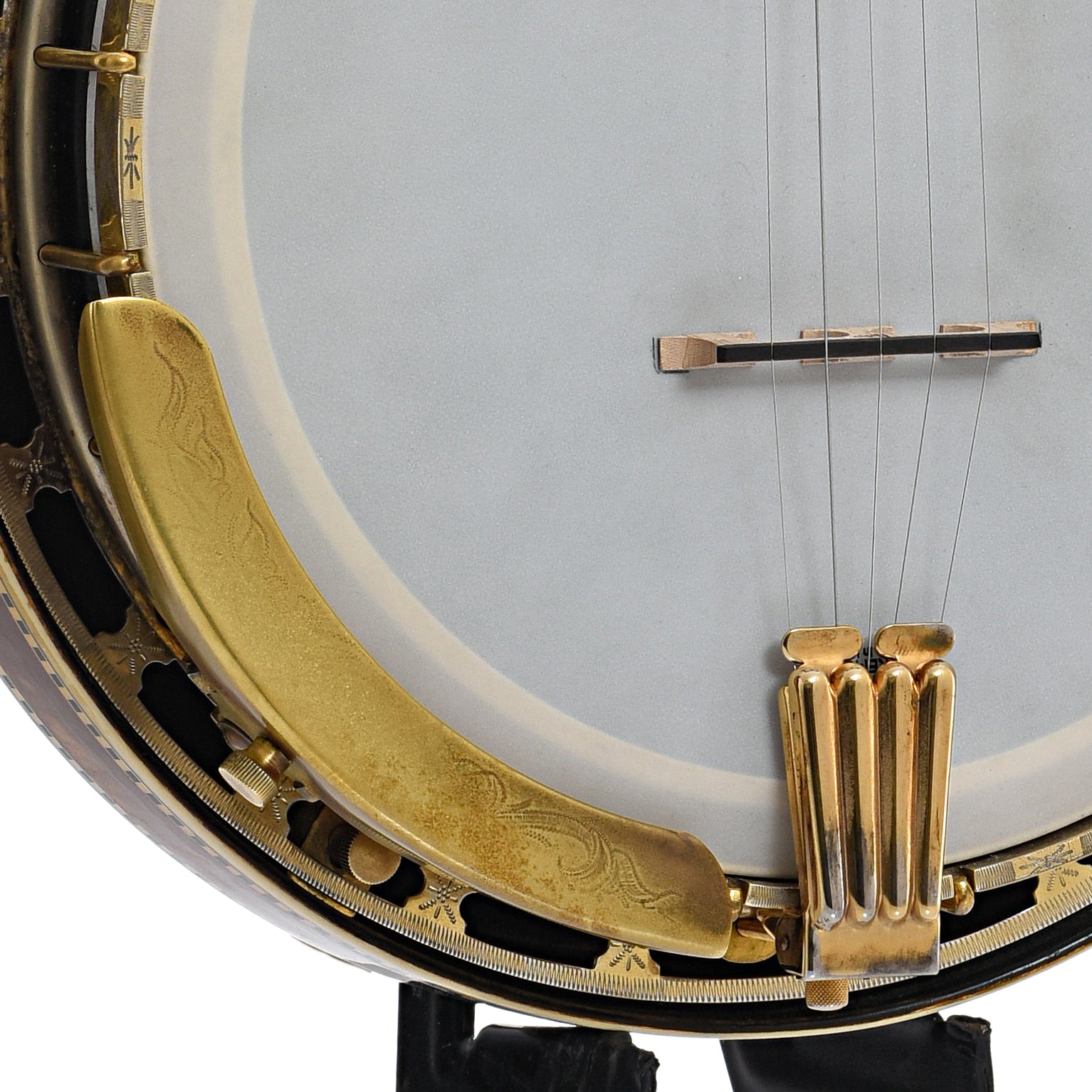

• Original engraved armrest with mute mount

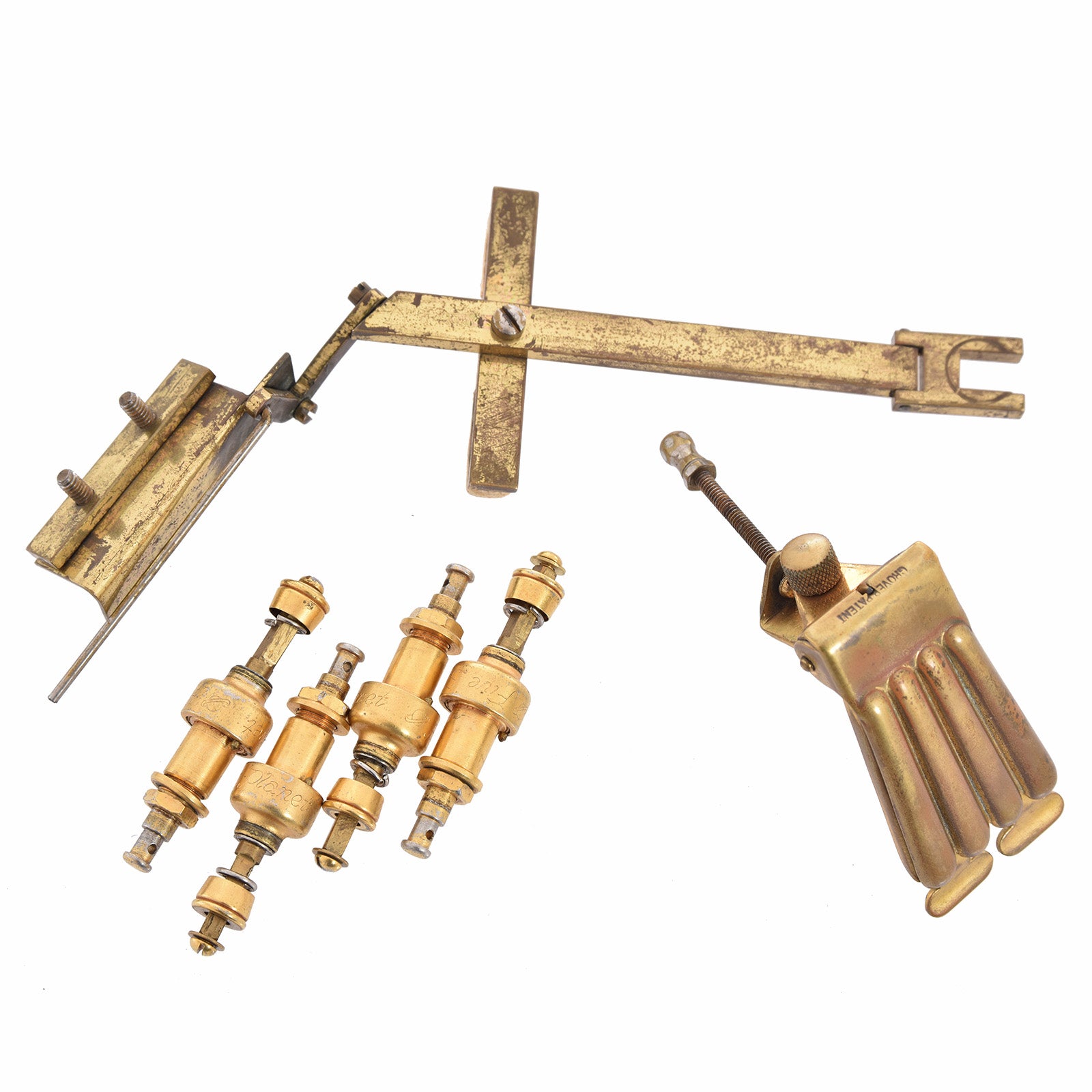

• Mute is in the case and stamped "13" in three places
• Hole remains in rim from removed mute
• Original "GROVER PATENT" clamshell tailpiece (in case)

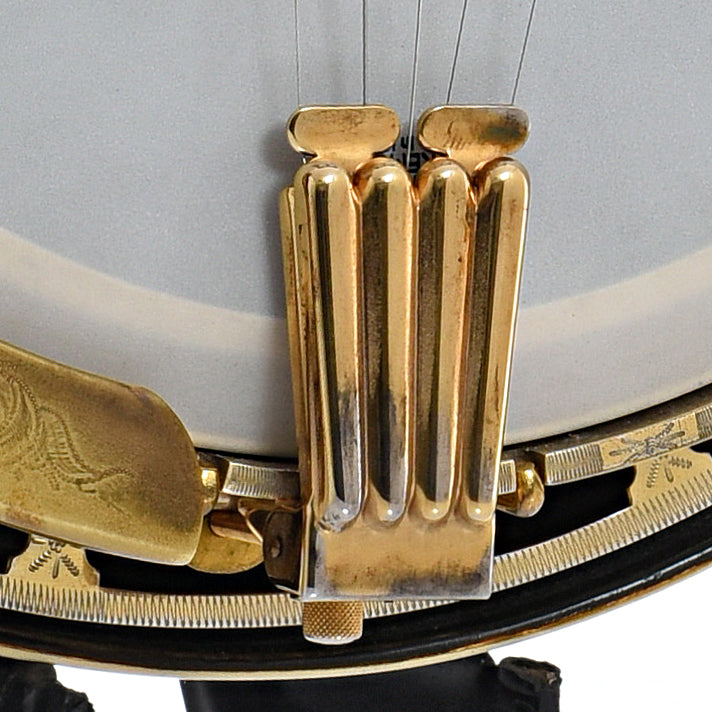

• Newer 5-string clamshell tailpiece installed

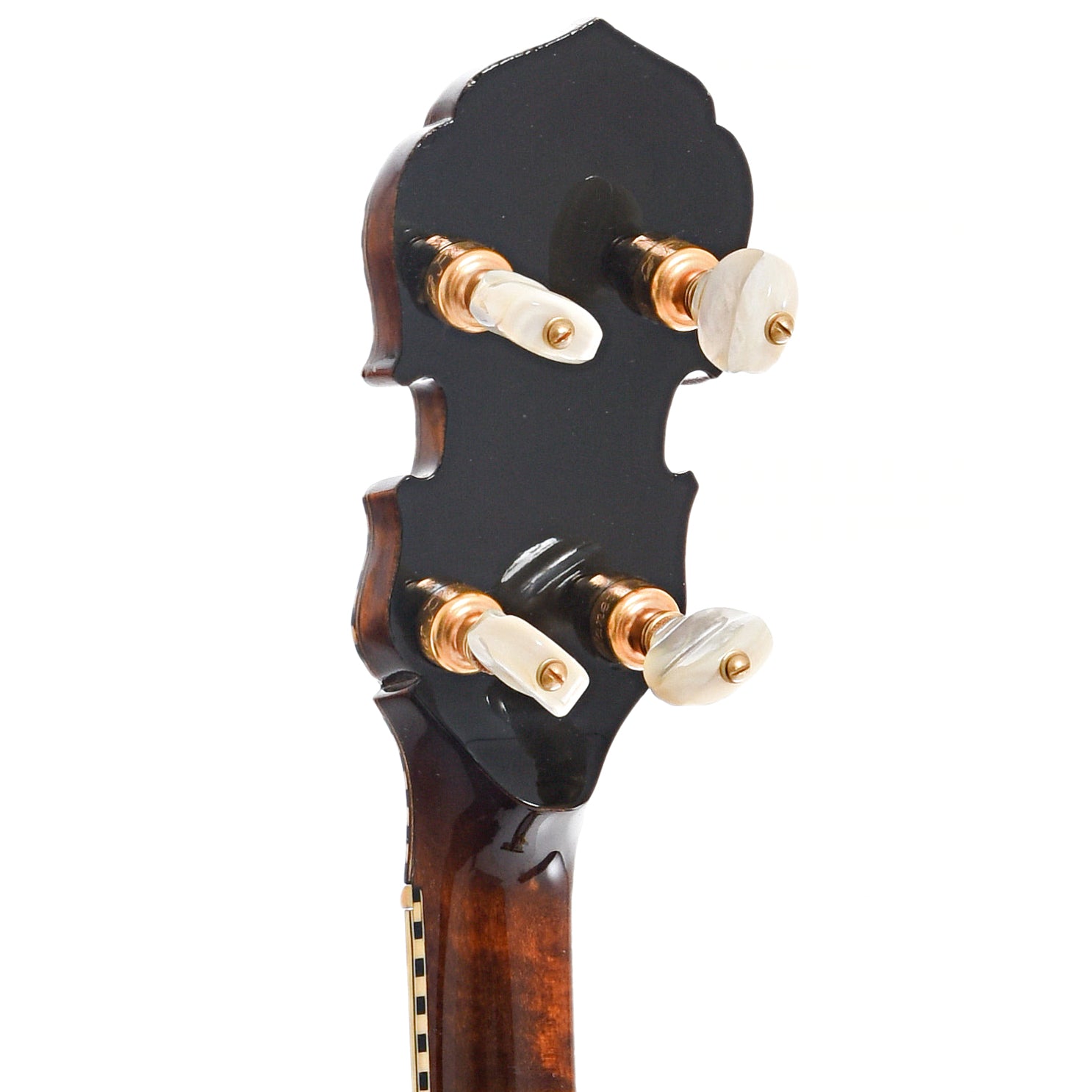

• Five Star tuners installed (original pearl buttons installed)
• 4 other Five Star tuners are in the case (no buttons)
• 1-1/4" nut, ~26-1/2" scale

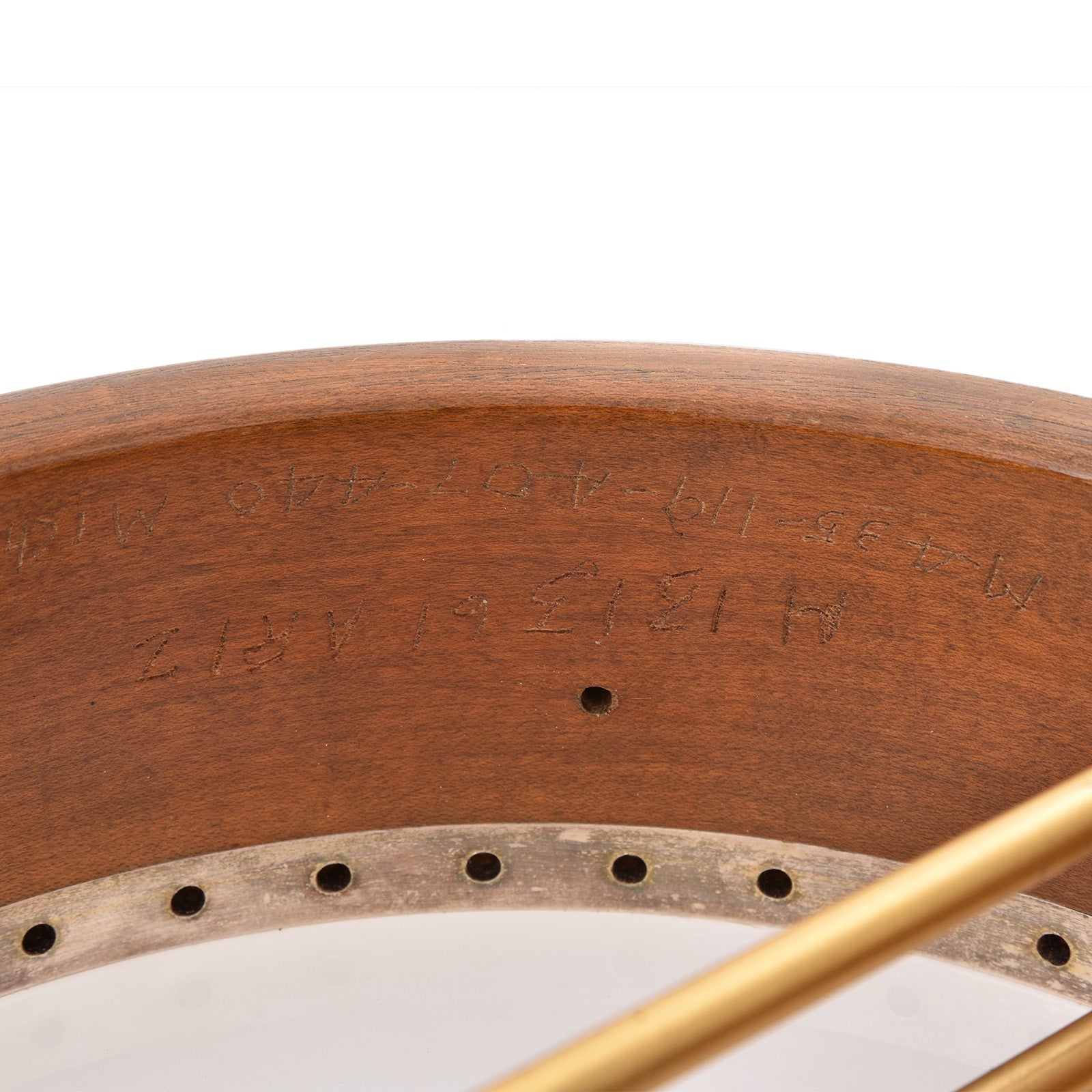

• There are 2 numbers scratched into rim
• There is 1 number scratched into the inside of resonator

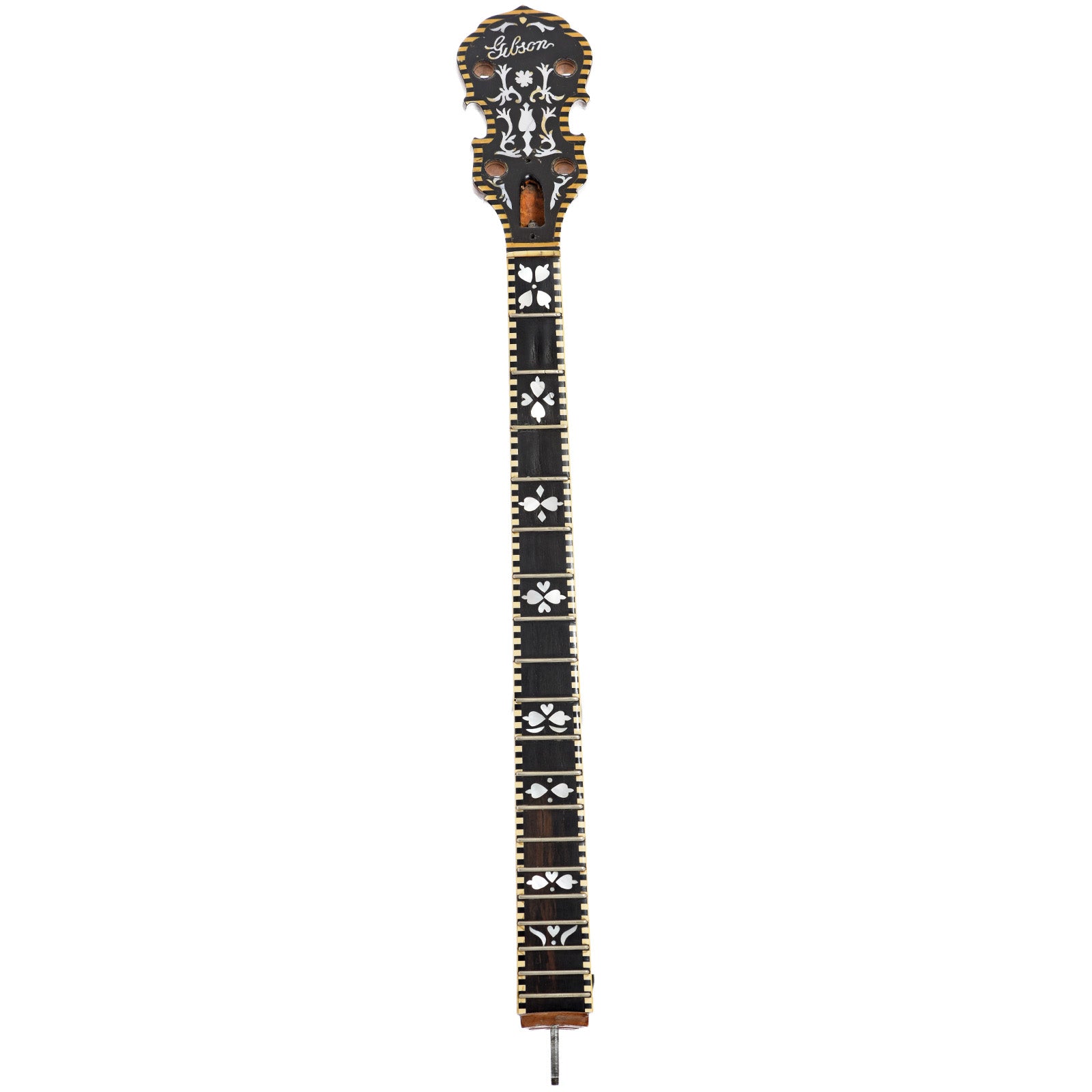

• Original tenor neck included and stamped "12" on heel

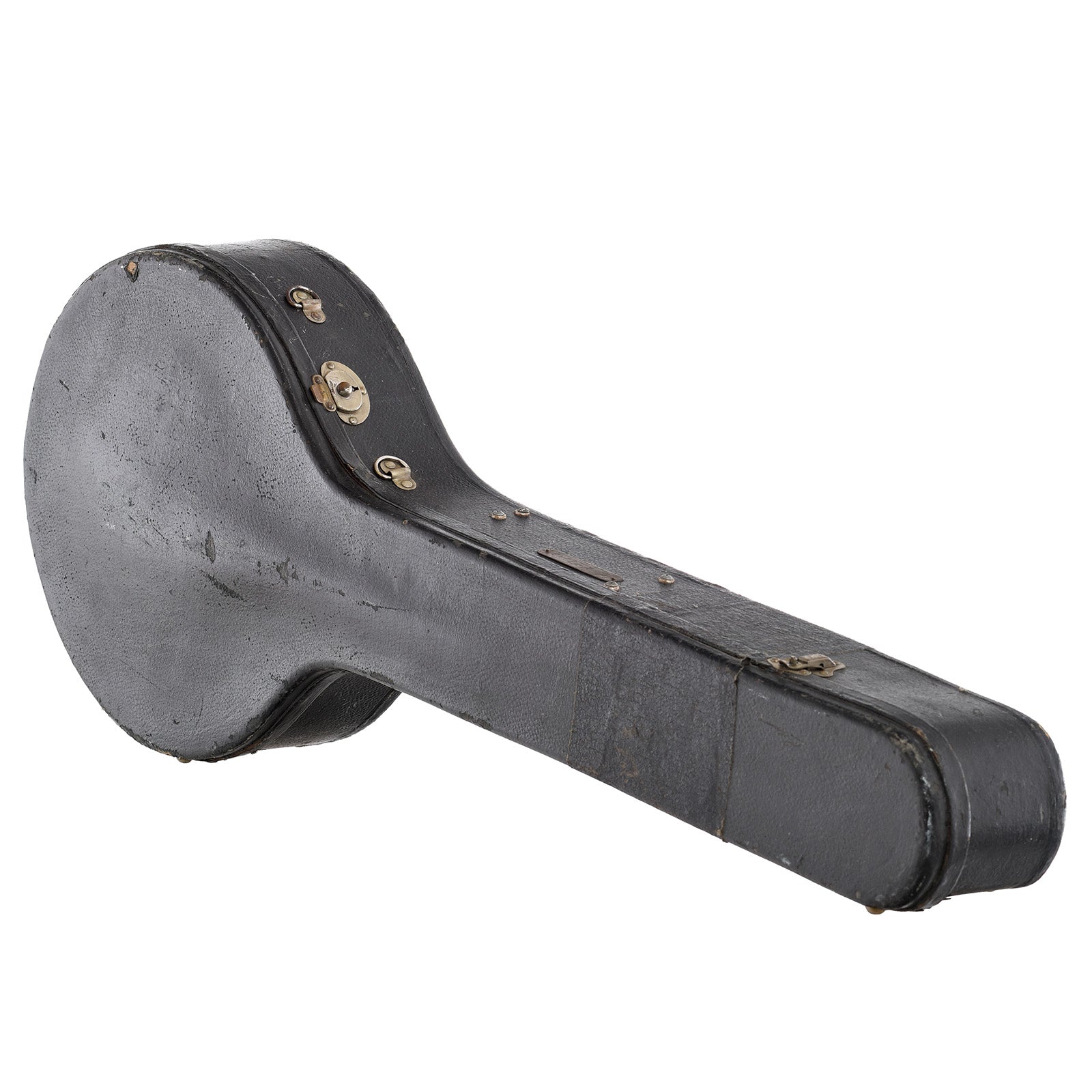

• With original modified tenor hardshell case (blue lining)
• On consignment
